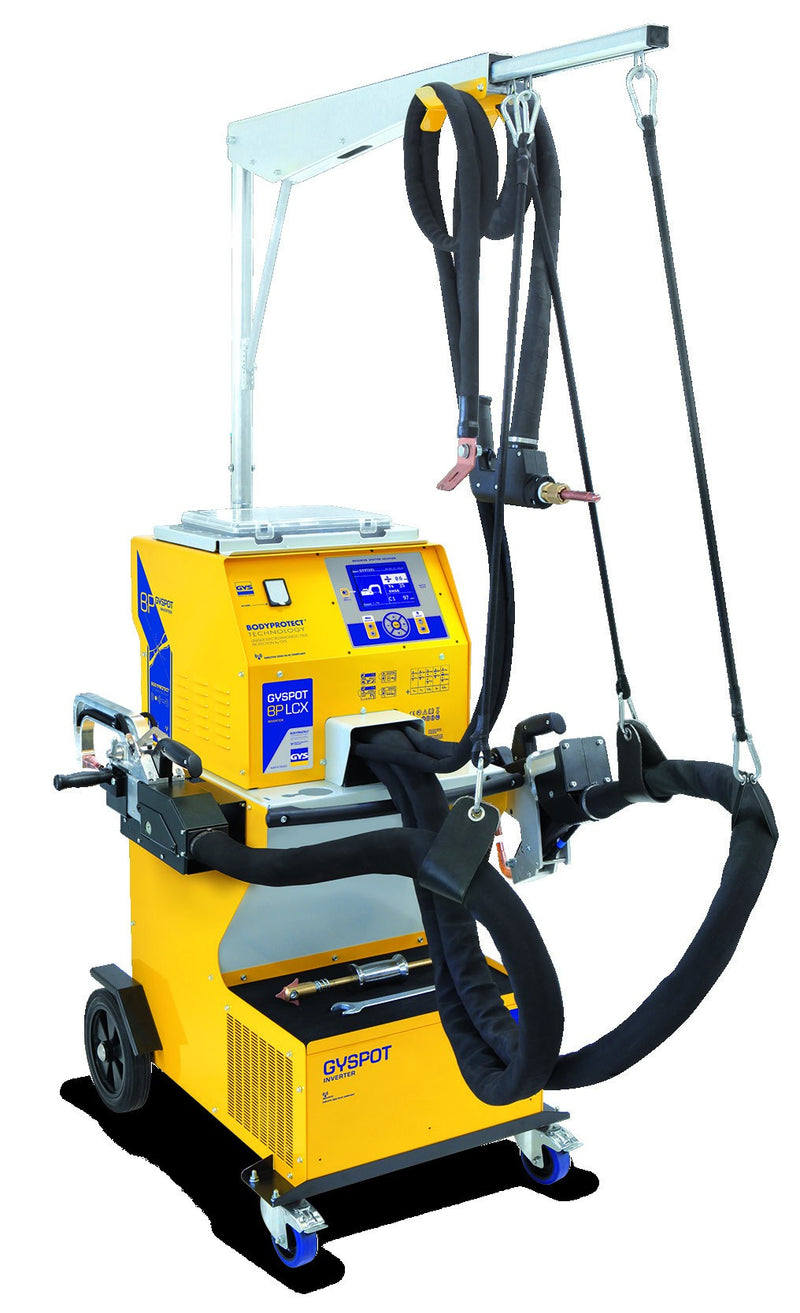

GYSPOT INVERTER BP.LCX-S7 230V
GYS

GYSPOT INVERTER BP.LCX-S7 (BPLC / BP LCX) 230V

Ref. 020948

Discontinued. No longer sold new; this page stays live for owners — spare parts, consumables and documentation are bel… See more

No longer sold — parts & support available
Welding Current13 000 A
Clamping Force550 daN
Power3-Phase 230V
CoolingLiquid-cooled
Discontinued

This machine is no longer sold new. We still support it — the parts, consumables and documentation below are for owners keeping one in service.

Replaced by these current modelsGYSPOT PTI GENIUS PLUSSee the current model → GYSPOT PTI MASTER COMPLETE (G1+G2+G4+G9) - ...See the current model → GYSPOT PTI EXPERT (5M) - 208/240VSee the current model → GYSPOT PTI NEOSee the current model →

Need a part that isn't listed? Call (415) 419-5824 with your serial number.

Datasheet (EN)
EN 60974-1

Discontinued. No longer sold new; this page stays live for owners — spare parts, consumables and documentation are below.

The GYSPOT BP.LCX was the first GYS resistance spot welder brought to the United States — the machine that put GYS in American body shops. It runs an X clamp and a C clamp with C-arms (not the G-arms of today's PTI range), 13,000 A at 550 daN, liquid-cooled, and requires the GYS specialist coolant. A single-sided gun on a 3 m cable handled spot-hammer, stud/rivet/ring welding and carbon shrinking. Replaced by the GYSPOT PTI NEO.

  • C-arm platform — C-arms, C-arm coolant hoses and caps still stocked

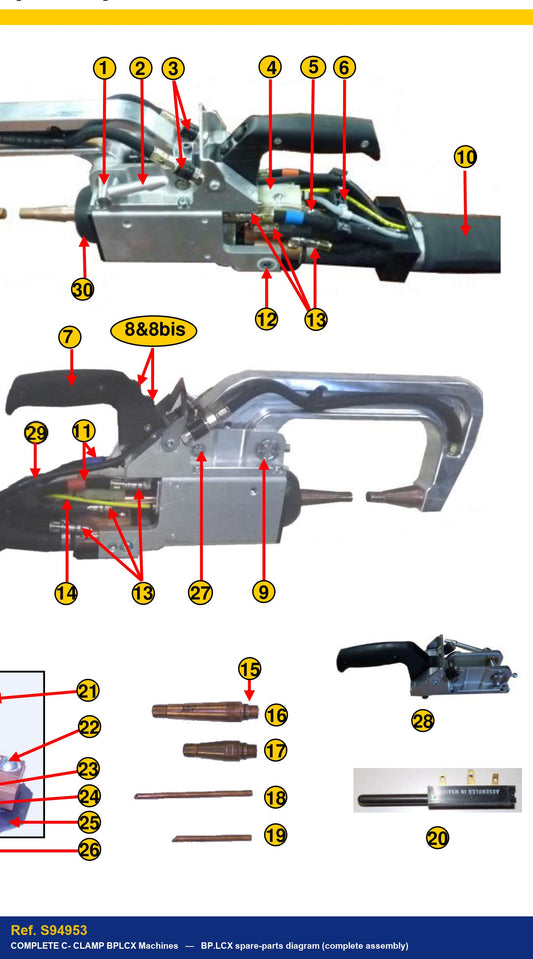

  • Complete C-clamp gun (S94953) and arm support (080089) available
  • Full spare-parts list from the GYS diagram below — boards, pumps, valves, handles

GYSUSA — the official home of GYS in the USA. Parts and technical help for this machine: (415) 419-5824.

Also known as: BPLC, BP LC, BP-LCX, BPLCX, LCX, GYSPOT BP — ref. 020948.

Performance

Welding Current13 000 A
Clamping Force550 daN
CoolingLiquid-cooled

Electrical & Physical

Power supply3-Phase 230V
Weight397 lbs
Dimensions25.6 x 31.5 x 80.7 in
CertificationEN 60974-1

Available Downloads

Datasheet (EN)
PDF • Click to download
Spare parts list — GYS diagram
PDF • Click to download

Manufacturer Warranty

Every new GYS machine carries a 2-year factory warranty from the date of sale. Keep your invoice — our US team handles claims and service directly.

2-Year Warranty

Technical Support

Factory-trained technicians for setup, OEM procedures, troubleshooting and maintenance questions.

Parts & Consumables

Need caps, electrodes, dies or arms for this machine? We stock genuine GYS parts in California.

Browse Related Parts
Maintain your equipment according to the schedule in the GYS manual to keep warranty eligibility.

Accessories & consumables that still fit

Still available new — keeps a GYSPOT INVERTER BP.LCX-S7 (BPLC / BP ... working.

  • C11 ARM

    C11 ARM

    C11 ARM

    Ref. 053649

    C11 ARM — genuine GYS welding arm (ref. 53649) for GYSPOT PTI-series spot welders. Ar...

    $1,352.00
    $1,352.00
  • C12 ARM

    C12 ARM

    C12 ARM

    Ref. 022997

    C12 ARM — genuine GYS welding arm (ref. 22997) for GYSPOT resistance spot welders. Ar...

    $691.00
    $691.00
  • C6 ARM

    C6 ARM

    C6 ARM

    Ref. 022409

    C6 ARM — genuine GYS welding arm (ref. 22409) for GYSPOT resistance spot welders. Arm...

    $741.00
    $741.00
  • C5 ARM

    C5 ARM

    Sold out

    C5 ARM

    Ref. 022393

    C5 ARM — genuine GYS welding arm (ref. 22393) for GYSPOT resistance spot welders. Arm...

    $742.00
    $742.00
    Sold out
  • C2 ARM

    C2 ARM

    C2 ARM

    Ref. 022386

    C2 ARM — genuine GYS welding arm (ref. 22386) for GYSPOT resistance spot welders. Arm...

    $956.00
    $956.00
  • C1 ARM

    C1 ARM

    C1 ARM

    Ref. 021402

    C1 ARM — genuine GYS welding arm (ref. 21402) for GYSPOT resistance spot welders. Arm...

    $1,037.00
    $1,037.00
  • Coolant Hose for C9 Arm

    Coolant Hose for C9 Arm

    Coolant Hose for C9 Arm

    Ref. 94579

    Genuine GYS replacement coolant hose (coolant line / cooling line) for the C9 welding...

    $76.50
    $76.50
  • Coolant Hose for C2 / C12 Arm

    Coolant Hose for C2 / C12 Arm

    Coolant Hose for C2 / C12 Arm

    Ref. 94573

    Genuine GYS replacement coolant hose (coolant line / cooling line) for the C2 / C12 w...

    $29.00
    $29.00
  • Coolant Hose for C1 Arm (360 mm)

    Coolant Hose for C1 Arm (360 mm)

    Coolant Hose for C1 Arm (360 mm)

    Ref. 94572

    Genuine GYS replacement coolant hose (coolant line / cooling line) for the C1 welding...

    $36.00
    $36.00
  • Coolant Hose for C10 Arm

    Coolant Hose for C10 Arm

    Coolant Hose for C10 Arm

    Ref. 94578

    Genuine GYS replacement coolant hose (coolant line / cooling line) for the C10 weldin...

    $31.00
    $31.00
  • Type A : Cap Box

    Type A : Cap Box

    Type A : Cap Box

    Ref. 048935

    Quantity: x40

    $171.00
    $171.00
  • Type G Caps

    Type G Caps

    Type G Caps

    Ref. 059672

    Quantity: x10

    $77.50
    $77.50
  • Type F Caps

    Type F Caps

    Type F Caps

    Ref. 049970

    Quantity: x6 For single sided gun

    $47.00
    $47.00
  • SPECIALIST WELDING COOLANT - 10L

    SPECIALIST WELDING COOLANT - 10L

    SPECIALIST WELDING COOLANT - 10L

    Ref. 052246

    SPECIALIST WELDING COOLANT - 10L (ref. 52246) — cooling-circuit part/consumable for l...

    $237.00
    $237.00

Spare parts for this machine

Genuine GYS service parts we hold in stock in California, from the manufacturer's spare-parts diagram. Order by reference, or call with your serial number if you're unsure.
