Riveting Dies & Consumables

Dies, die kits and self-piercing rivets for GYSPRESS riveters — the full range of C-dies, punching dies and SPR rivets for OEM-approved joining.

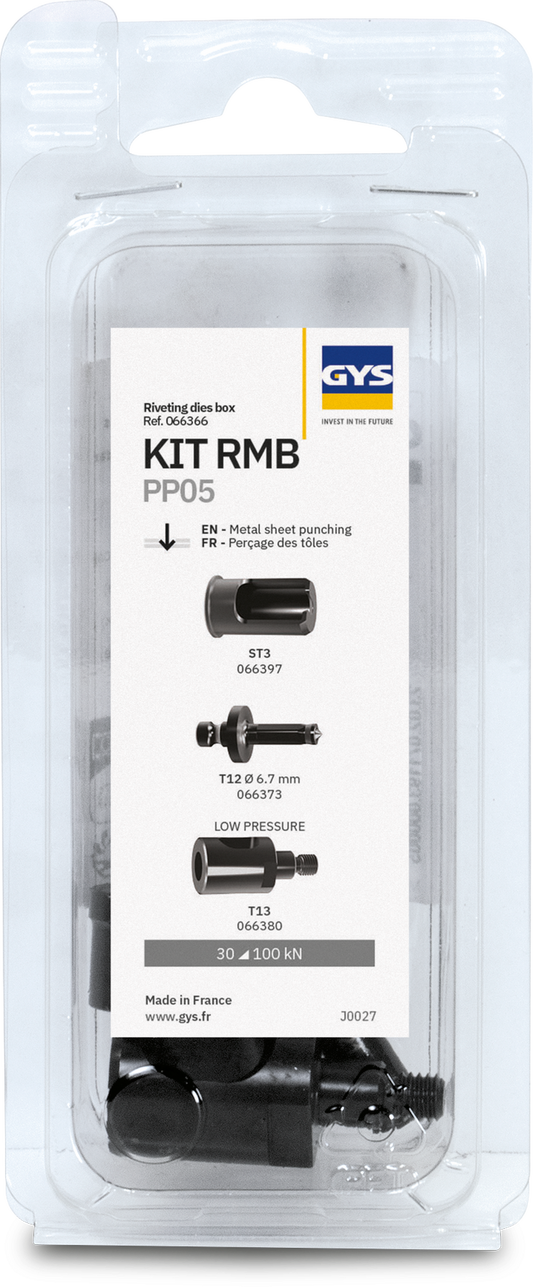

Dies and rivets for GYSPRESS riveters, by manufacturer

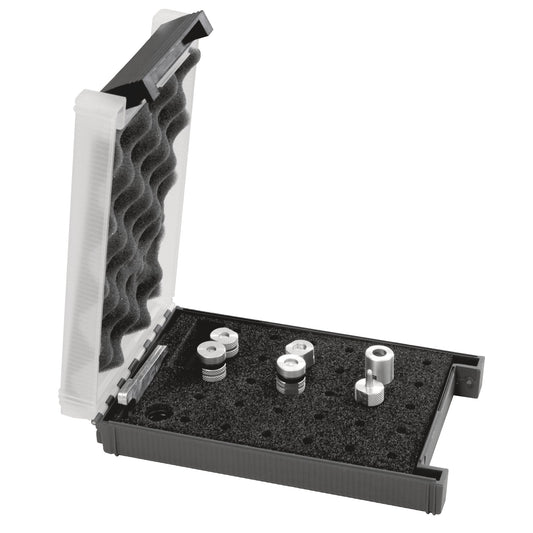

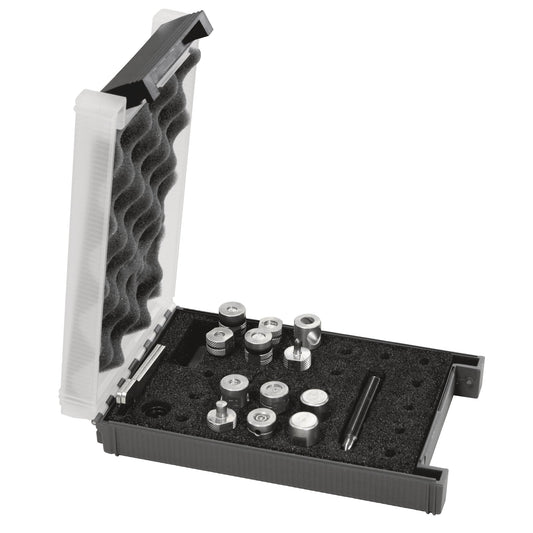

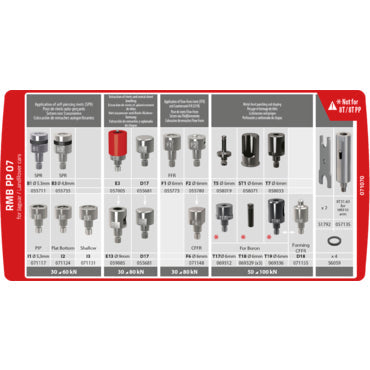

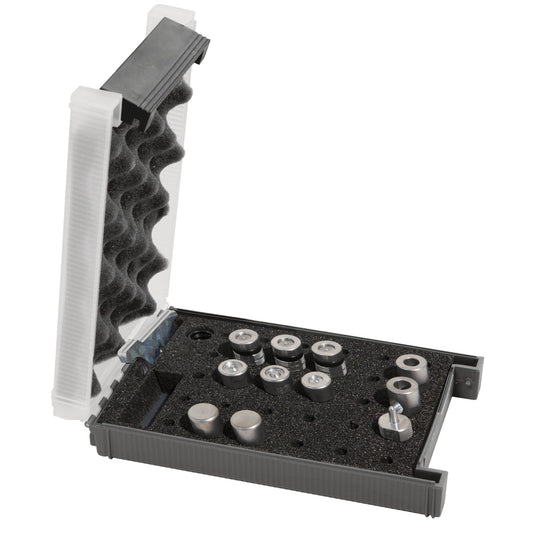

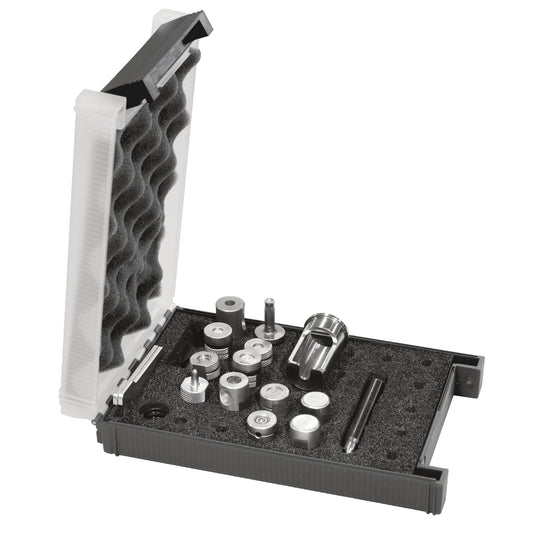

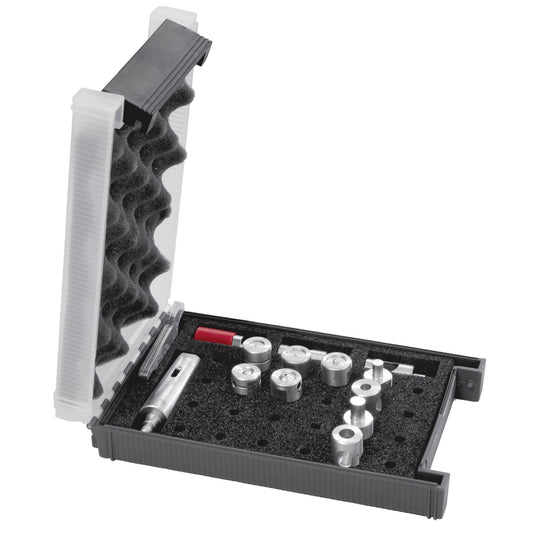

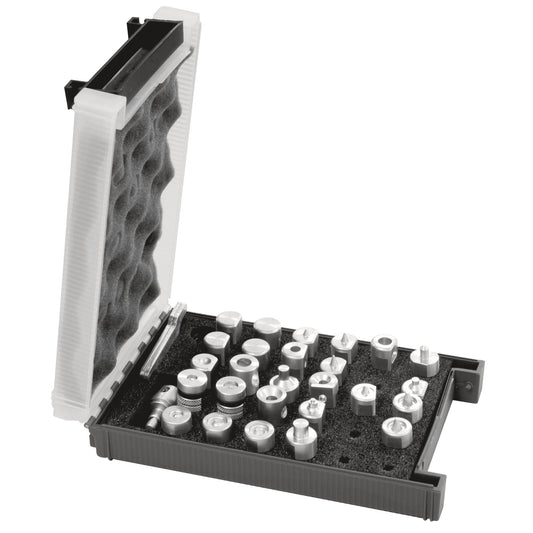

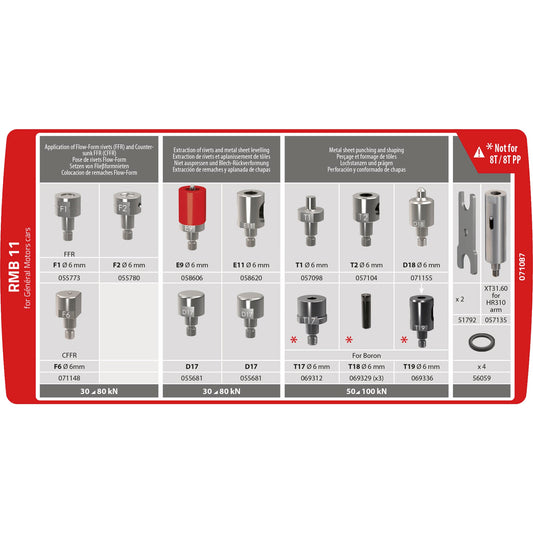

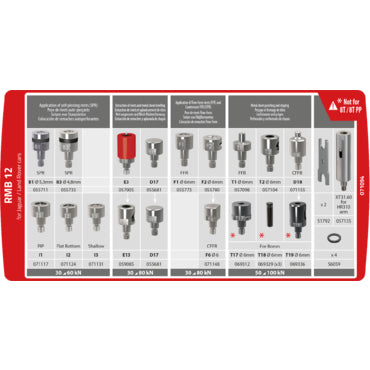

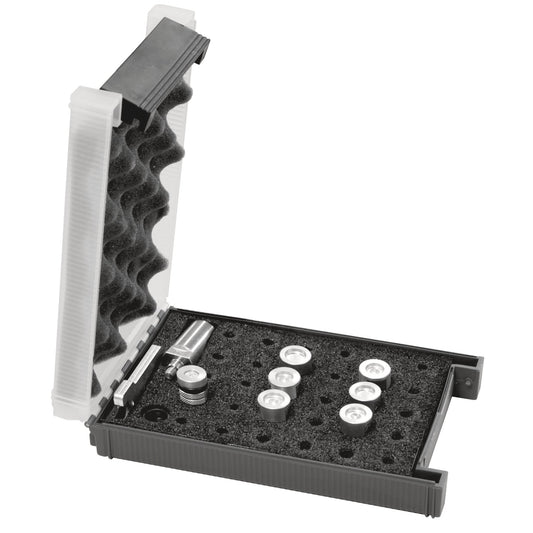

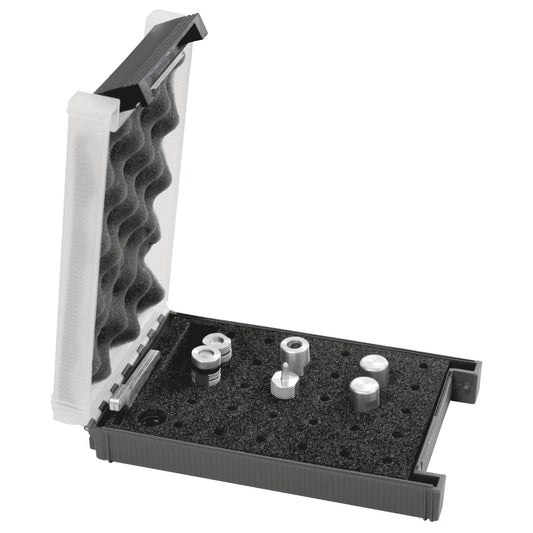

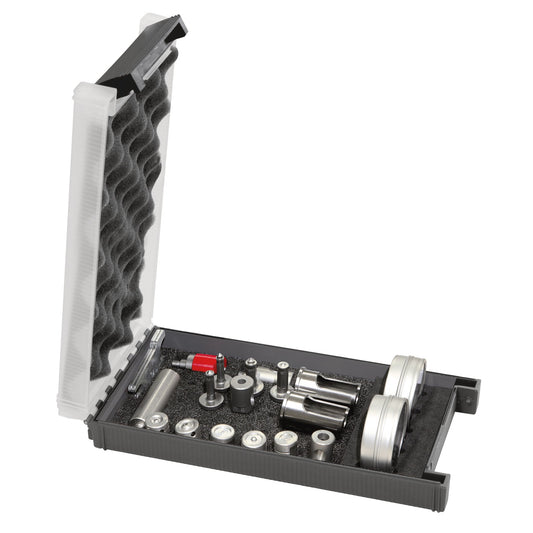

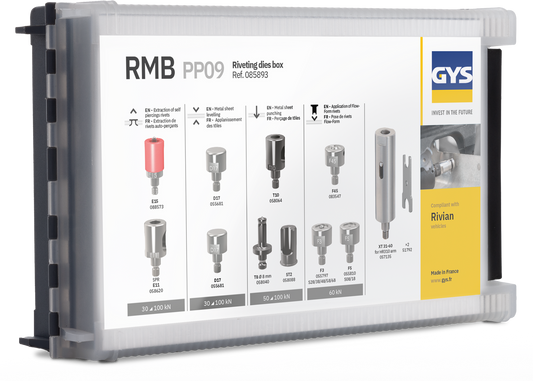

The dies decide the joint. GYS makes RMB die kits to each manufacturer's repair specification, so the kit you buy here is the one named in the procedure: RMB 03 for the VW Group, RMB 12 for BMW, RMB 17 for Rivian, RMB 18 for Tesla, RMB 20 for Lucid and the push-pull kits for the 8T.PP and 10T.PP riveters. The standard die kit covers the A, B, D, E, F and T dies most steel and aluminum repairs use.

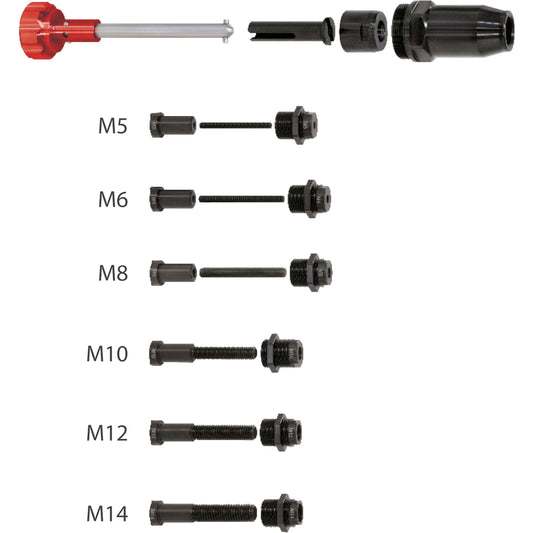

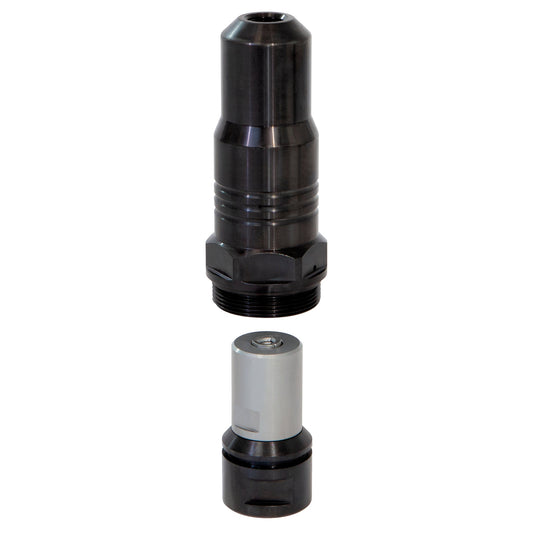

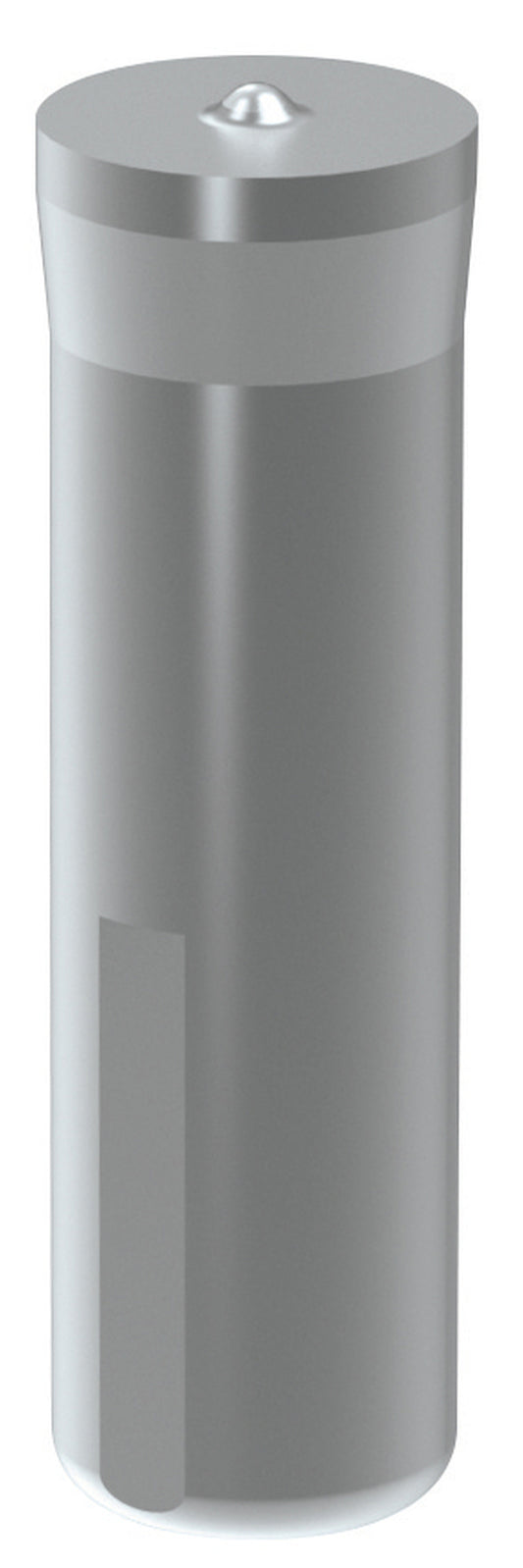

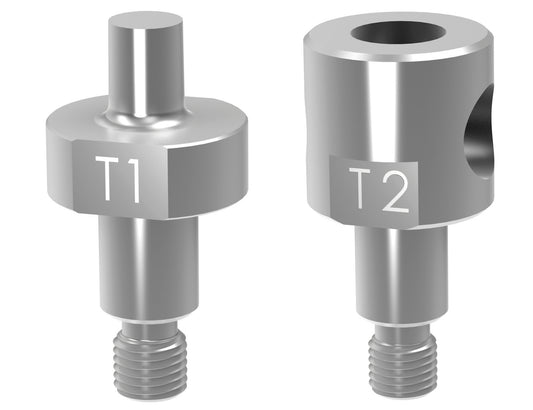

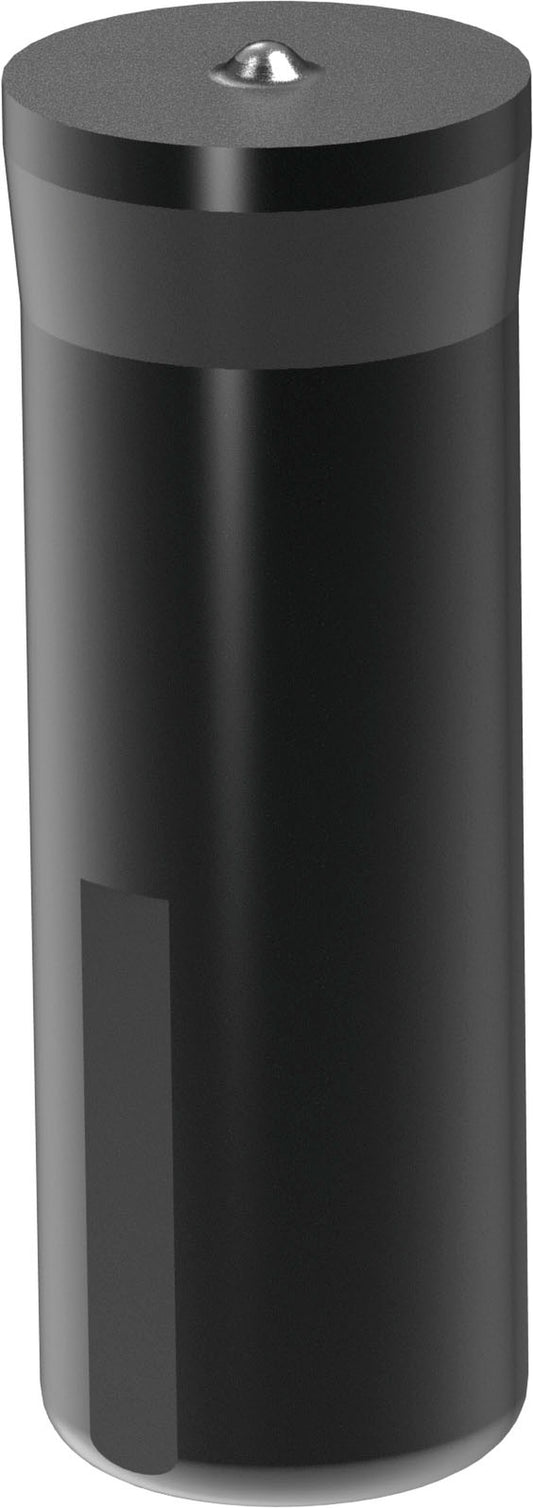

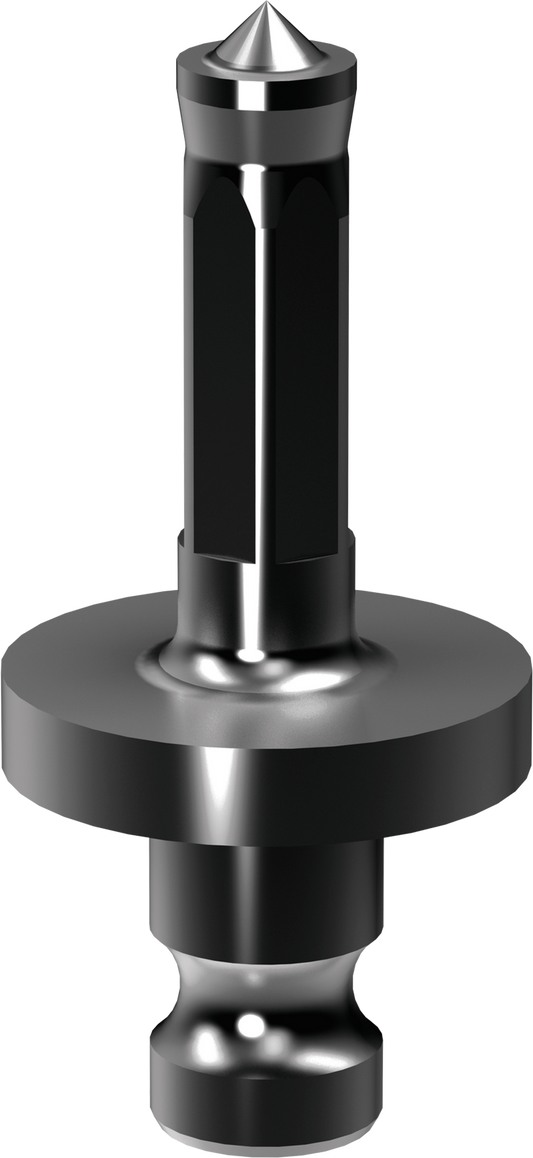

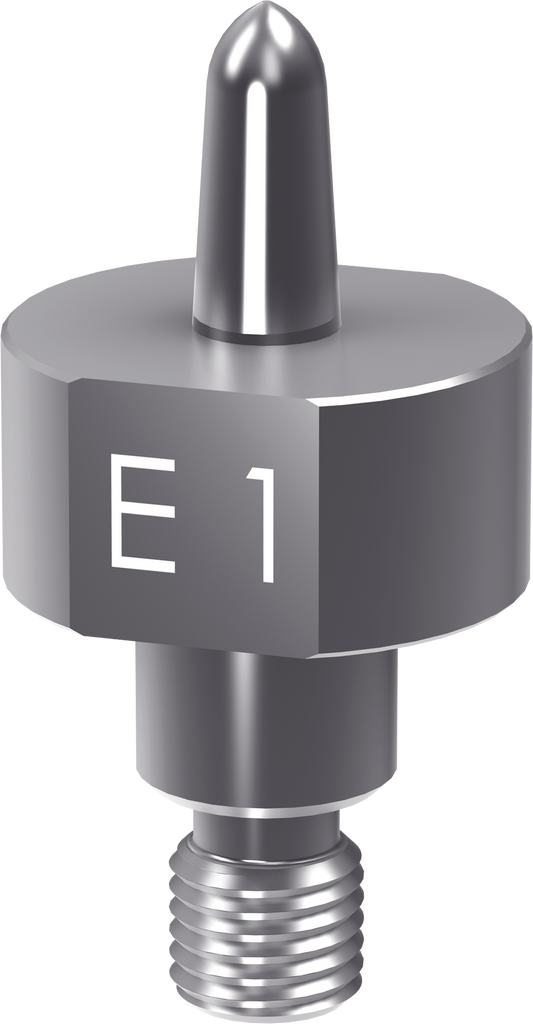

Rivets and single dies

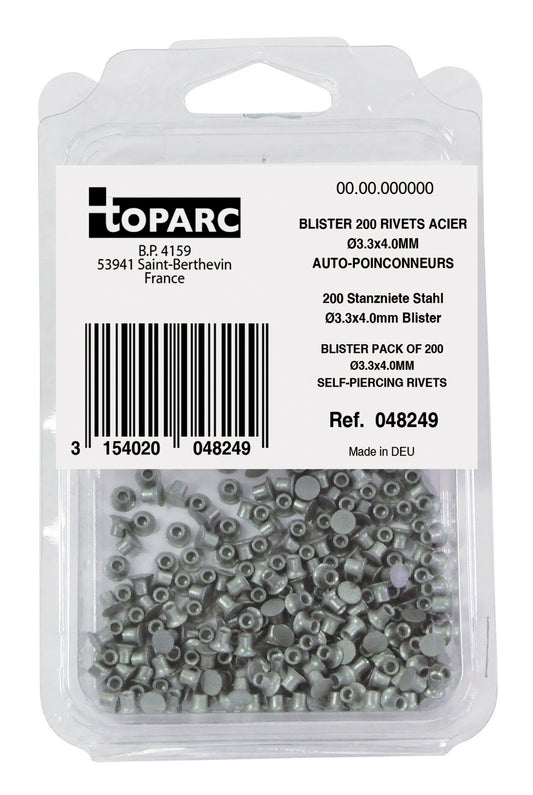

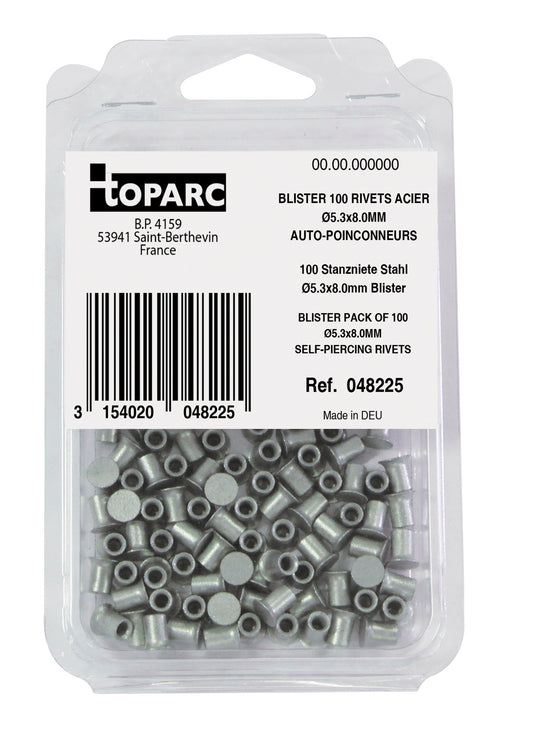

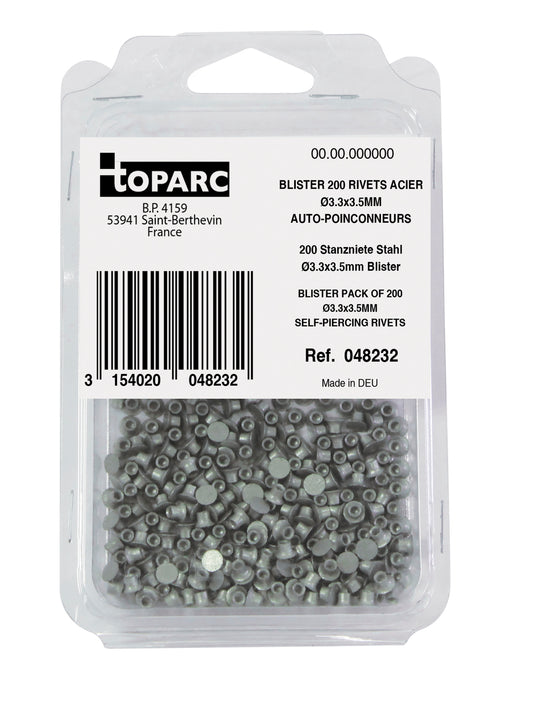

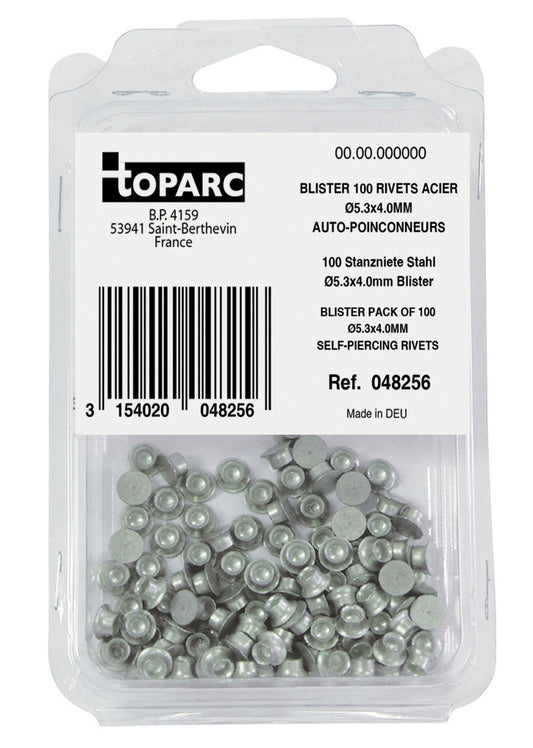

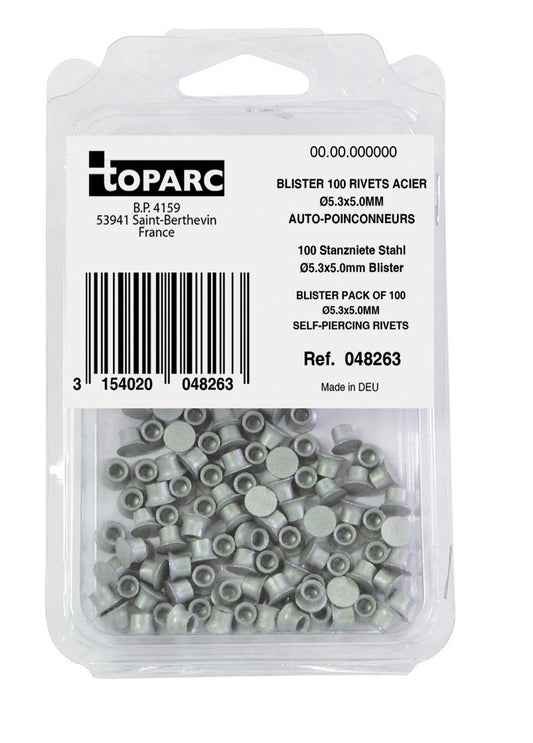

Self-piercing rivets come in blister packs of 100 and 200 by diameter and length, from 3.3 x 3.5 mm to 5.3 x 9.0 mm, plus flow-form and blind rivets for the adaptors. Single dies are listed by their letter and number so you can replace one worn die instead of a kit. Each page shows the riveters it fits, and the 8T, 10T and COBRA share the same dies.

Dies and rivets are stocked in California and ship the same business day. Not sure which kit your OEM program requires: send us the procedure or call (415) 419-5824 and we confirm before you order.

How to size a self-piercing rivet

Rivet length = measured stack thickness + 1 to 2 mm. Measure the combined thickness of the sheets you are joining, then take a rivet 1 mm to 2 mm longer, and nothing outside that window. Shorter and the rivet does not flare into the bottom sheet; longer and it punches through or cracks it. A 3.5 mm stack takes a 4.5 to 5.5 mm rivet: from the GYS range, the Ø5.3 × 5.0 mm. Only the length comes from your measurement; the OEM procedure tells you which diameter the joint takes.

Die and pressure go with the diameter. Ø3.3 mm rivets set with the A1 + A2 dies at 3 to 5.2 bar (44 to 75 PSI) on the riveter's regulator; Ø5.3 mm rivets set with the B1 + B2 dies at 4.7 to 5.8 bar (68 to 84 PSI). All four dies are in the standard die kit.

Self-piercing rivetMeasured stackDiesPressurePack
Ø3.3 × 3.5 mm1.5 – 2.5 mmA1 + A23 – 5.2 bar200 rivets, $87.00
Ø3.3 × 4.0 mm2.0 – 3.0 mmA1 + A23 – 5.2 bar200 rivets, $99.00
Ø5.3 × 4.0 mm2.0 – 3.0 mmB1 + B24.7 – 5.8 bar100 rivets, $67.00
Ø5.3 × 5.0 mm3.0 – 4.0 mmB1 + B24.7 – 5.8 bar100 rivets, $65.00
Ø5.3 × 6.0 mm4.0 – 5.0 mmB1 + B24.7 – 5.8 bar100 rivets, $65.00
Ø5.3 × 7.0 mm5.0 – 6.0 mmB1 + B24.7 – 5.8 bar100 rivets, $65.00
Ø5.3 × 8.0 mm6.0 – 7.0 mmB1 + B24.7 – 5.8 bar100 rivets, $63.00
Ø5.3 × 9.0 mm7.0 – 8.0 mmB1 + B24.7 – 5.8 bar100 rivets, $79.50

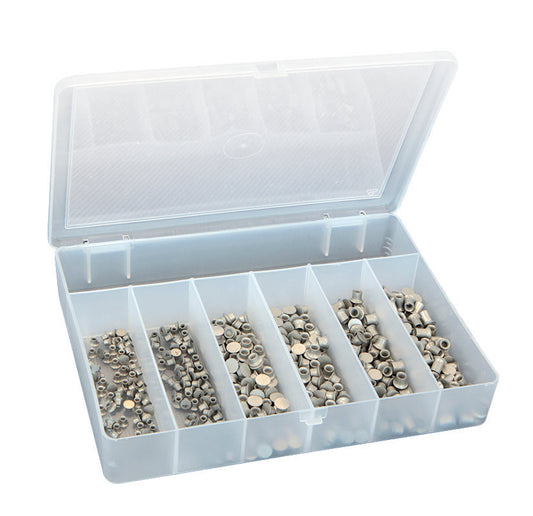

The box of 6 × 50 self-piercing rivets ($215.00) covers both diameters in six sizes for a shop that does not yet know which programs it will see. Not sure about a stack? Call (415) 419-5824 with the measurement.
