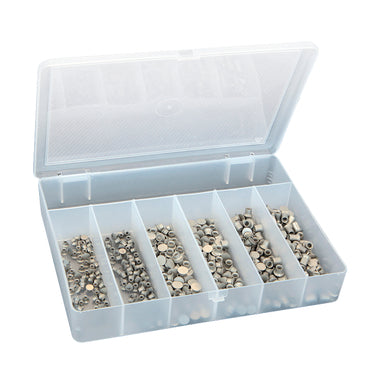

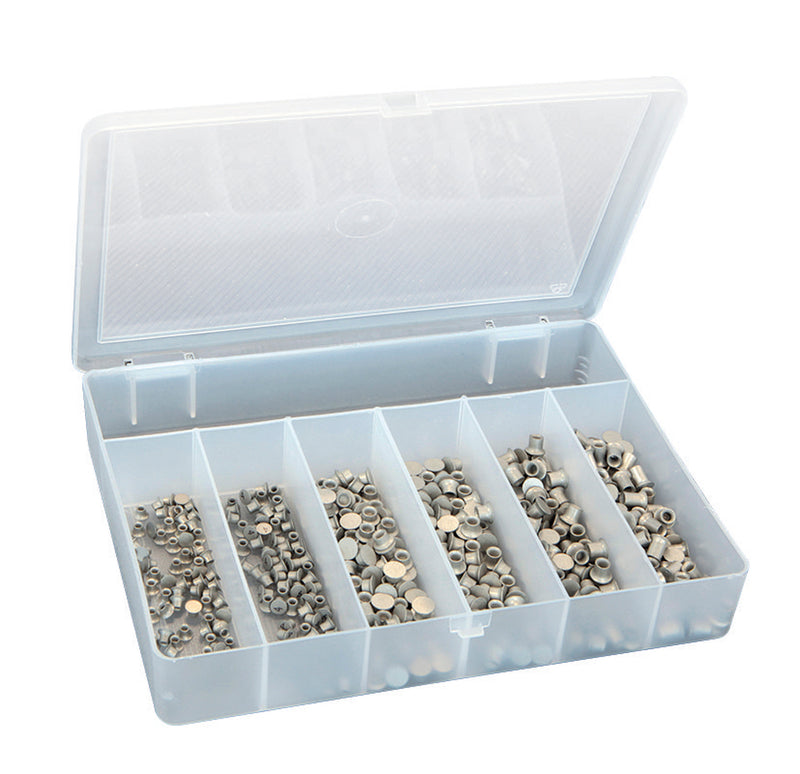

BOX OF 6 x 50 SELF-PIERCING RIVETS (Ø 3.3 & 5.3mm)
Ref. 048706
BOX OF 6 x 50 SELF-PIERCING RIVETS (Ø 3.3 & 5.3mm) (ref. 48706) — structural rivets for GYSPRESS riveting. Use the… See more
Ships for $9.90 flat by Ground in the lower 48; free on orders over $300.
Rivet length = measured stack thickness + 1 to 2 mm. Sizing table
BOX OF 6 x 50 SELF-PIERCING RIVETS (Ø 3.3 & 5.3mm) (ref. 48706) — structural rivets for GYSPRESS riveting. Use the rivet the OEM procedure calls for, with the matching die.
- Count and diameter in the title
Genuine GYS part, supplied by GYSUSA — the official home of GYS in the USA. Not sure it fits your setup? Call (415) 419-5824 and we'll confirm before you order.
Manufacturer Warranty
Every new GYS machine carries a 2-year factory warranty from the date of sale. Keep your invoice — our US team handles claims and service directly.
2-Year WarrantyTechnical Support
Factory-trained technicians for setup, OEM procedures, troubleshooting and maintenance questions.
Parts & Consumables
Need caps, electrodes, dies or arms for this machine? We stock genuine GYS parts in California.
Browse Related PartsHow to size a self-piercing rivet
Rivet length = measured stack + 1 to 2 mm
Measure the combined thickness of the sheets you are joining, then take a rivet 1 mm to 2 mm longer, and nothing outside that window. Shorter and the rivet does not flare into the bottom sheet. Longer and it punches through or cracks it.
Example: a 3.5 mm stack takes a 4.5 to 5.5 mm rivet, so the Ø5.3 × 5.0 mm.
Die and pressure go with the diameter. Ø3.3 mm rivets set with the A1 + A2 dies at 3 to 5.2 bar (44 to 75 PSI) on the riveter's regulator. Ø5.3 mm rivets set with the B1 + B2 dies at 4.7 to 5.8 bar (68 to 84 PSI). All four dies are in the standard die kit; the OEM procedure tells you which diameter the joint takes.
Only the length comes from your measurement. Not sure about a stack? Call (415) 419-5824 with the number.
| Self-piercing rivet | Measured stack | Dies | Pressure | Pack |
|---|---|---|---|---|
| Ø3.3 × 3.5 mm | 1.5 – 2.5 mm | A1 + A2 | 3 – 5.2 bar | 200 rivets, $87.00 |
| Ø3.3 × 4.0 mm | 2.0 – 3.0 mm | A1 + A2 | 3 – 5.2 bar | 200 rivets, $99.00 |
| Ø5.3 × 4.0 mm | 2.0 – 3.0 mm | B1 + B2 | 4.7 – 5.8 bar | 100 rivets, $67.00 |
| Ø5.3 × 5.0 mm | 3.0 – 4.0 mm | B1 + B2 | 4.7 – 5.8 bar | 100 rivets, $65.00 |
| Ø5.3 × 6.0 mm | 4.0 – 5.0 mm | B1 + B2 | 4.7 – 5.8 bar | 100 rivets, $65.00 |
| Ø5.3 × 7.0 mm | 5.0 – 6.0 mm | B1 + B2 | 4.7 – 5.8 bar | 100 rivets, $65.00 |
| Ø5.3 × 8.0 mm | 6.0 – 7.0 mm | B1 + B2 | 4.7 – 5.8 bar | 100 rivets, $63.00 |
| Ø5.3 × 9.0 mm | 7.0 – 8.0 mm | B1 + B2 | 4.7 – 5.8 bar | 100 rivets, $79.50 |
