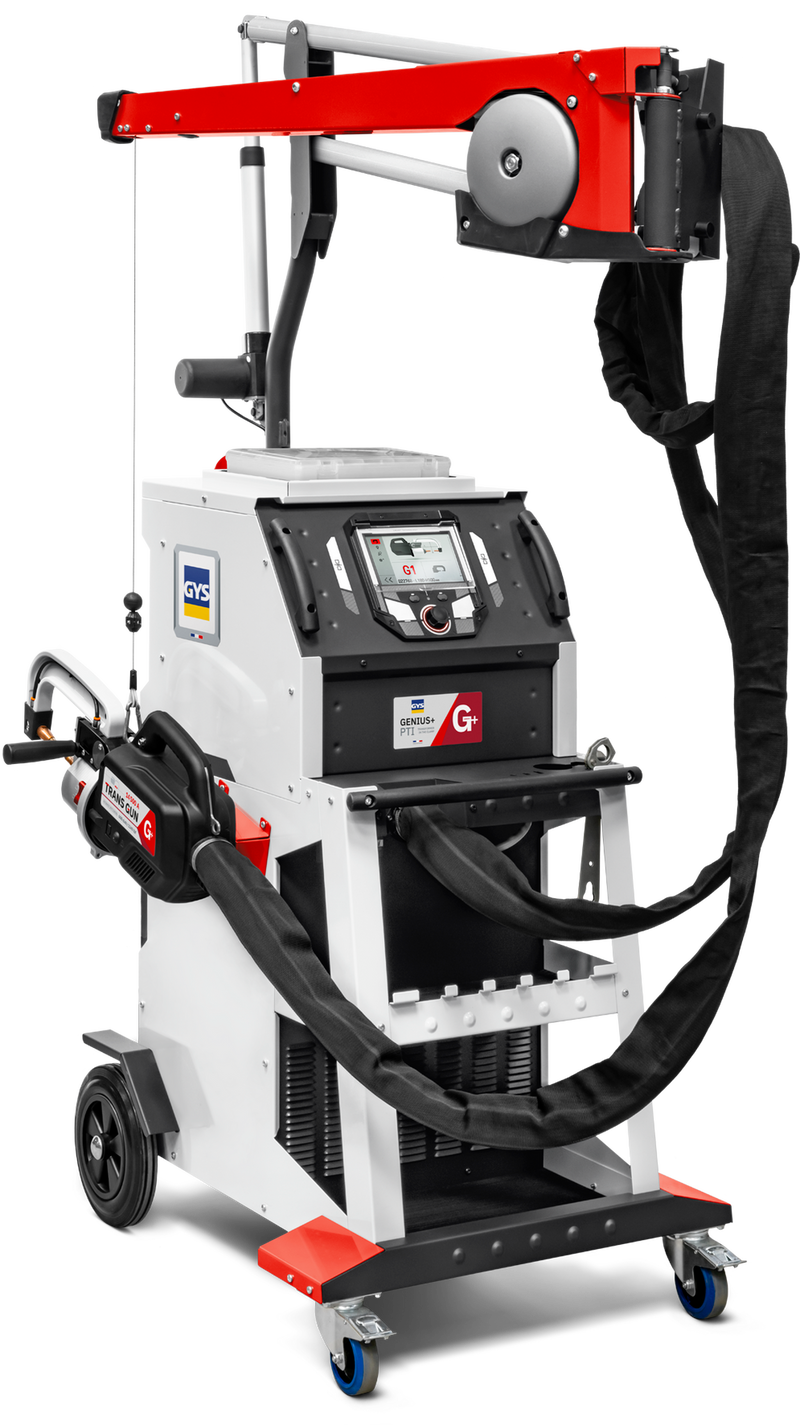

GYSPOT PTI GENIUS PLUS
Ref. 083288
The result of continuous innovation by GYS, the GYSPOT PTI GENIUS Plus revolutionises spot welding. Fully automated an… See more
The result of continuous innovation by GYS, the GYSPOT PTI GENIUS Plus revolutionises spot welding. Fully automated and ultra-ergonomic, it combines a lightweight clamp with pneumatic over-opening, simplified arm positioning, and an extended motorised overhanging balancing system offering unrivalled mobility and accessibility. Its patented cable locking system makes it easy to detach the clamp quickly, and its new 7" colour interface delivers clear display and intuitive navigation — optimising configuration and day-to-day operation.
Supplied on pallet with balancing system + G1 arm. Made in France. EN 62135-1 compliant.
High Performance
- High duty cycle with max. 14,500 A welding current — welds all steel types on modern vehicles (HSS/VHSS, UHSS and Boron)
- Liquid-cooled transformer, electrodes and caps (7.9 US gal) for maximum productivity
- High speed: 15 spots/min
- Clamping force up to 600 daN at 116 psi to meet OEM requirements
- Clamp with integrated transformer — minimal power consumption (50 A fuse)

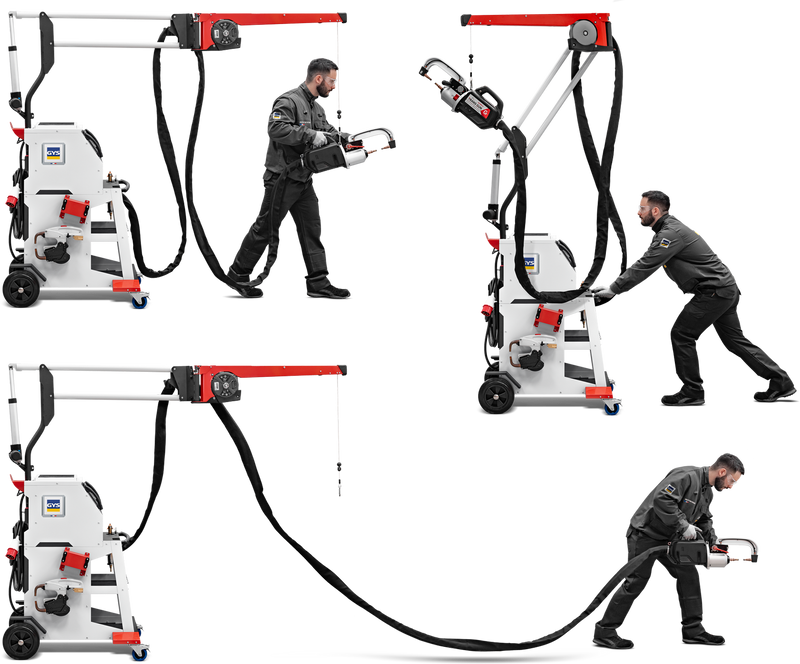

Adjustable Balancing System

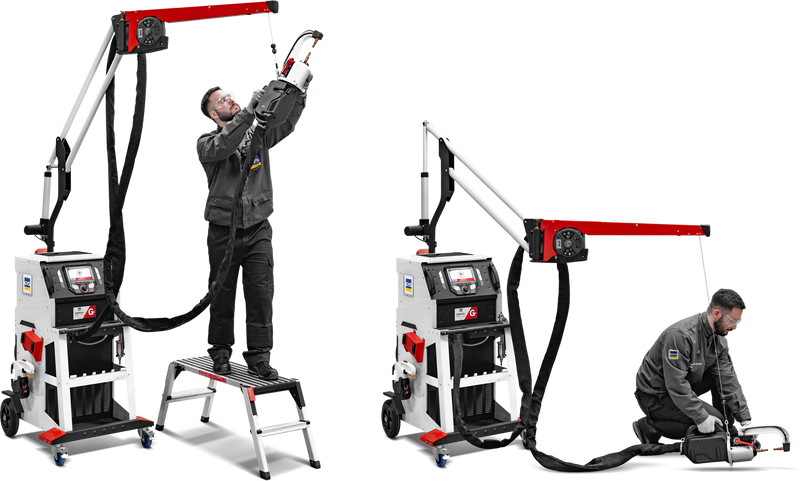

- Offset by 55 in from the power source for improved range
- Motorised boom arm adjusts height to accommodate vehicle dimensions
- Cable lock for easy clamp release (GYS patent)
- Counterbalance relieves clamp weight, away from the working area
- 90° folding boom arm to optimise space
- Rubber protectors on ends of moveable parts
Easy to Use
- Automatic mode: the intelligent clamp detects correct welding parameters automatically
- Pneumatic over-opening for 3 in clearance between the two caps

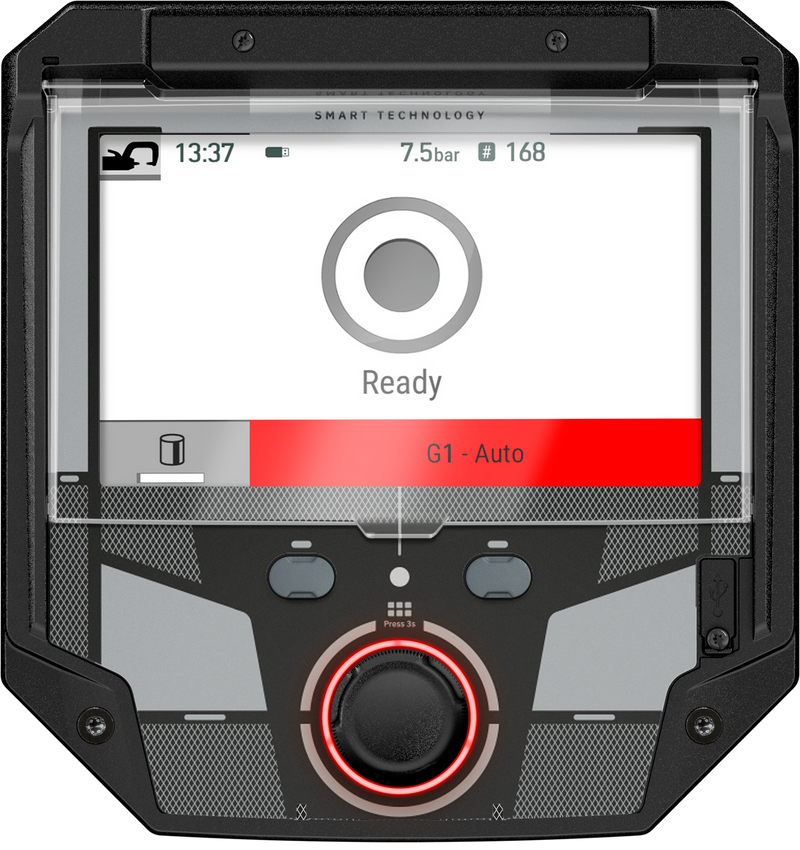

- Improved user interface with large 7" colour screen
- Electrode retracts in under 2 seconds
- Spot counter to determine cap service life
Ergonomic
- Reinforced, easy-to-manoeuvre trolley with 7.9 US gal coolant tank
- Compact 27.3 lb clamp with 360° rotation via built-in gyroscope
- 19 ft interconnection cable — disconnectable for easier clamp maintenance
- Expander on front wheels for greater stability
- Integrated 9-arm support
Premium G-Arms
- Quick, tool-free welding arm changes
- Brass clamp holder and arm foot plate for optimum electrical contact
- Automatic coolant terminal connection
- Wide range of optional arms for full vehicle access
Optimised Traceability
- Spot weld traceability with data export via USB for reporting
- Complete machine updates via USB stick
Specifications
| Power supply | 3× 200 / 208 / 230 / 240 V, 50/60 Hz |
| Fuse (D-type) | 40 A |
| Welding current (I RMS) | 12,500 A @ 200 V · 13,000 A @ 208 V · 14,500 A @ 230/240 V |
| Open circuit voltage (U₀) | 6.5 – 7.7 V |
| Max. power (Smax) | 75 – 89 kVA |
| Permanent power (Sp) | 11.4 – 13.7 kVA |
| Spots per minute (max.) | 15 |
| Clamping force | Up to 600 daN @ 116 psi |
| Clamp weight | 27.3 lbs |
| Interconnection cable | 19.7 ft, liquid-cooled |
| Boom offset | 55 in |
| Working height | 57 – 108 in |
| Coolant capacity | 7.9 US gal |
| Dimensions | 28 × 35 × 78 in |
| Weight | 220 lbs |
| Standard | EN 62135-1 |
Optional Accessories

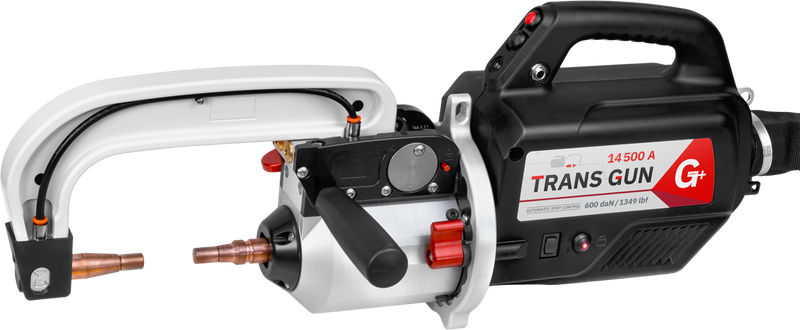

- Quick Fix single-point gun kit (Ref. 082823)
- Full range of G arms and consumables
Also known as: squeeze-type resistance spot welder (STRSW).
Performance
| Welding Current | 14 500 A |
| Clamping Force | 600 daN |
| Duty Cycle | 15 spots/min |
| Cooling | Liquid-cooled |
Electrical & Physical
| Power supply | 3-Phase 200-240V |
| Frequency | 50/60 Hz |
| Breaker / Fuse | 50 A |
| Weight | 220 lbs |
| Dimensions | 28 x 35 x 78 in |
| Certification | EN 62135-1 |
Available Downloads
Manufacturer Warranty
Every new GYS machine carries a 2-year factory warranty from the date of sale. Keep your invoice — our US team handles claims and service directly.
2-Year WarrantyTechnical Support
Factory-trained technicians for setup, OEM procedures, troubleshooting and maintenance questions.
Parts & Consumables
Need caps, electrodes, dies or arms for this machine? We stock genuine GYS parts in California.
Browse Related PartsCompatible accessories
Genuine GYS parts and options for the GYSPOT PTI GENIUS PLUS.
-
-
-

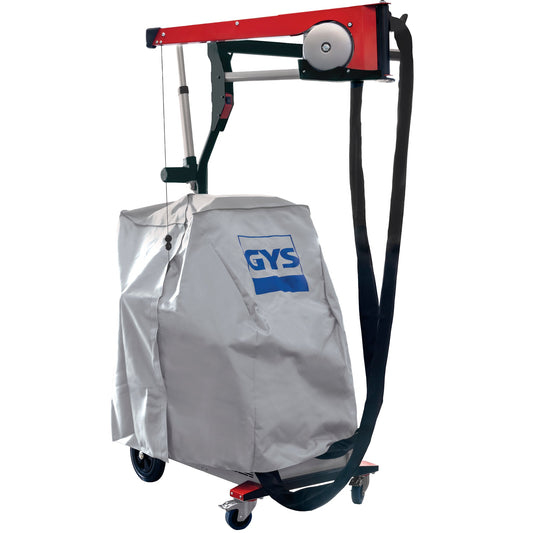

GYSPOT PTI Genius Protection Cover
