GYSPOT PTI EXPERT (5M) - 208/240V
Ref. 083950
The GYSPOT PTI EXPERT is the heavy-duty end of the GYSPOT PTI range — everything the PTI MASTER does, plus the two thi… See more
Get your price by email
Your quote in a minute.
Or call (415) 419-5824.
Financing available on this equipment for US shops. Contact us for the monthly terms.
The GYSPOT PTI EXPERT is the heavy-duty end of the GYSPOT PTI range — everything the PTI MASTER does, plus the two things that matter when the gun is in your hands all day: a balancing arm (boom) that carries the weight of the gun, and a copper transformer built for sustained heavy-duty work.

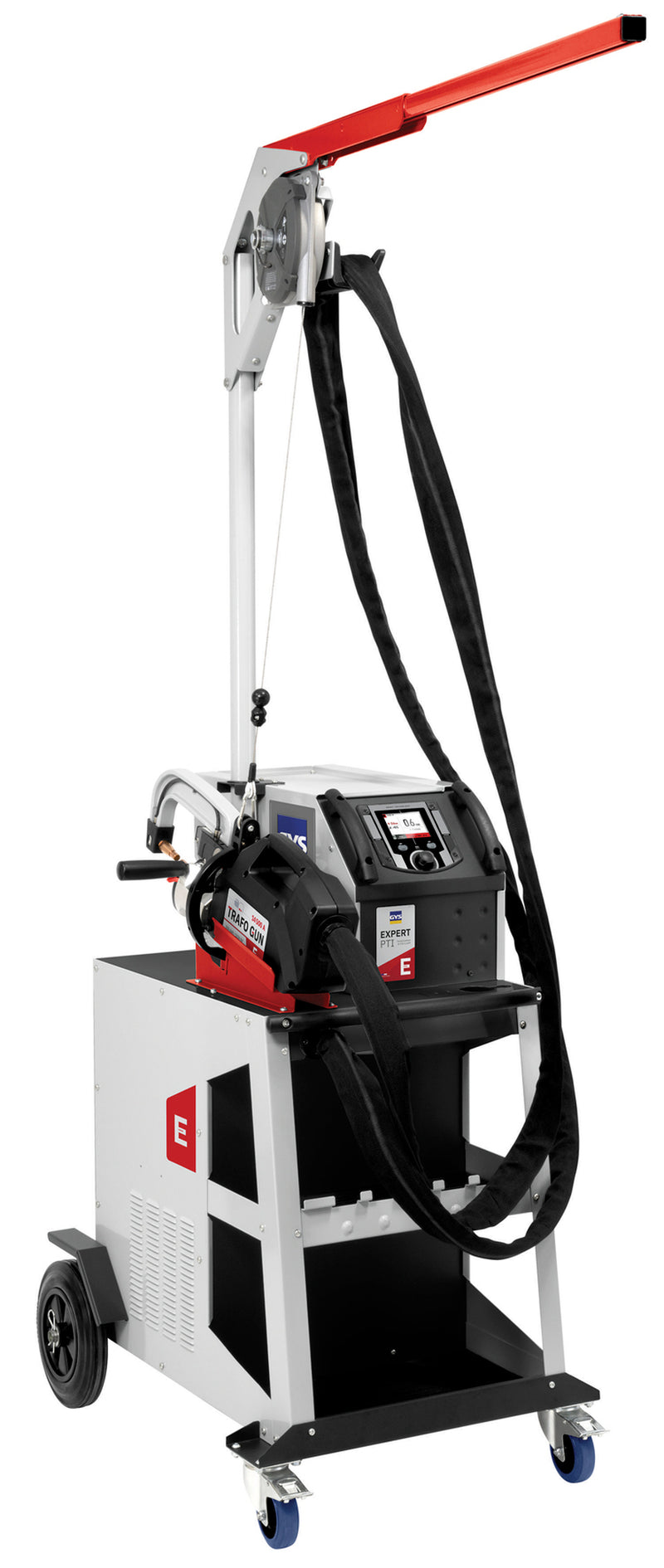

- Balancing arm with sliding counterweight — the boom takes the load of the clamp, so the operator guides the gun instead of holding it up. This is the difference on a full day of production welding.
- Copper transformer for heavy-duty duty cycles and sustained high-amperage work.
- 14,500 A max welding current — enough for every steel on a modern vehicle, including HLE/THLE, UHLE and Boron.
- Patented manual over-opening leaving 2.95 in between the caps, and manual arm opening for 7.87 in of clearance.
- 550 daN clamping force at 117 psi, meeting OEM requirements.
- High duty cycle with a 7.9 US gal liquid-cooling reservoir on a reinforced, manoeuvrable trolley.

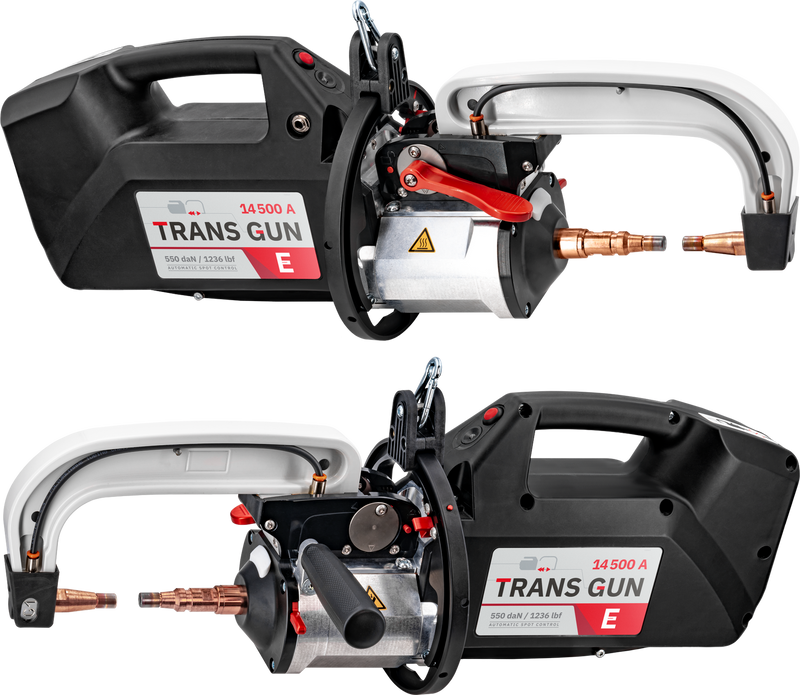

- Compact 26.6 lb gun with a 360° integrated rotating mechanism and an integrated transformer that keeps power draw to a 50 A fuse.
- 5 m (16.4 ft) disconnectable harness — reach anywhere around the vehicle, and detach the gun for easy maintenance.
- Traceability built in — spot counter for cap service life, USB data export and PC software supplied for reporting.
- Supplied packaged with a G1 arm. Made in France, EN 62135-1.
Specifications
| Max welding current | 14,500 A @ 240 V & 230 V · 13,000 A @ 208 V |
| Clamping force | 550 daN @ 117 psi |
| Welding speed | 10 spots/min (max) |
| Supply | 3-phase 208–240 V, 50/60 Hz |
| Fuse / breaker | 50 A (D curve) |
| Cooling | Liquid — 7.9 US gal (30 L tank) |
| Gun weight | 26.6 lbs |
| Harness length | 16.4 ft (5 m), disconnectable |
| Cables | 4 x AWG8, 26.2 ft |
| Over-opening | 2.95 in between caps · 7.87 in arm clearance |
| Machine weight | 251.3 lbs |
| Standard | EN 62135-1 · Made in France |
Option: Quick Fix single-point gun kit (082823).
Performance
| Welding Current | 14 500 A |
| Clamping Force | 550 daN |
| Duty Cycle | 10 spots/min |
| Cooling | Liquid-cooled |
Electrical & Physical
| Power supply | 3-Phase 208-240V |
| Frequency | 50/60 Hz |
| Breaker / Fuse | 50 A |
| Weight | 251.3 lbs |
| Dimensions | 25.6 x 39.4 x 90.5 in |
| Certification | EN 62135-1 |
