GYSPOT INVERTER BP.LG (GYSPOT BP GENIUS) — 208/230 V
Ref. 023550
The GYSPOT INVERTER BP.LG (sold in the USA as the GYSPOT BP GENIUS, ref. 023550) was GYS's liquid-cooled inverter spot… See more
Financing available on this equipment for US shops. Contact us for the monthly terms.

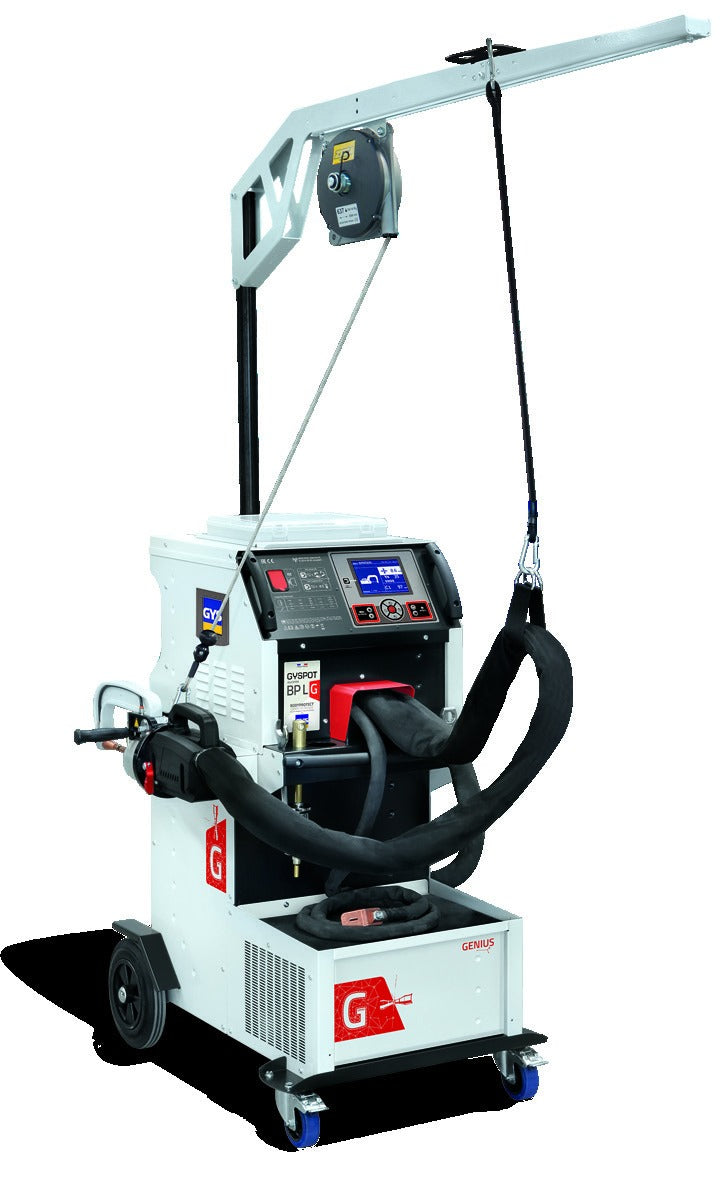

The GYSPOT INVERTER BP.LG (sold in the USA as the GYSPOT BP GENIUS, ref. 023550) was GYS's liquid-cooled inverter spot welder for high-strength steels, built around the GENIUS G-clamp: a 6 kg clamp with automatic electrode retraction (80 mm opening, 20 mm at rest), tool-free arm changes, a lockable gyroscope and a remote-controlled trigger. On a 3-phase 208–240 V supply it delivers 10,500 to 12,500 A and 550 daN of clamping force at 8 bar, with water-cooled cables, electrodes and caps.
Its AUTO mode recognises the steel type, sheet thickness, panel-bond adhesive and insulating layers between HSS, UHSS and boron sheets and sets the weld itself; six other modes (Normal, Manual, Multi, GYSteel, Manufacturer, Energy) cover every OEM procedure, and every spot is recorded to the SD card for reporting. Navigation is on a 5.7-inch LCD screen. Supplied new with the G1, G2, G3 and G4 arms, the arm support, the single-point gun and consumables.
This machine is no longer sold. GYSUSA still stocks its G-arms, electrode caps, consumables and many spare parts — see the lists below — and the current GYSPOT PTI range (NEO, MASTER, EXPERT and GENIUS PLUS) is its direct replacement, using the same G-arm family. Send us your serial number for anything not listed.
Also known as: BP.LG, BPLG, BP LG, BP GENIUS, BP-G, GYSPOT BP.LG 220 V — ref. 023550.
Performance
| Welding Current | 12,500 A at 240 V (10,500 A at 208 V) |
| Clamping Force | 550 daN at 8 bar |
| Arm Reach | G-arm family: G1–G12 (550 daN arms) |
| Cooling | Liquid-cooled clamp, cables, electrodes and caps |
| Controller | 5.7-inch LCD, 7 modes incl. AUTO, SD-card spot recording |
Electrical & Physical
| Power supply | 200–240 V, 3-phase (ref. 023550) |
| Protection Rating | IP 20 |
| Weight | 160 kg (353 lb) |
| Dimensions | 65 × 80 × 205 cm |
| Certification | EN 62135-1 |
Available Downloads
Manufacturer Warranty
Every new GYS machine carries a 2-year factory warranty from the date of sale. Keep your invoice — our US team handles claims and service directly.
2-Year WarrantyTechnical Support
Factory-trained technicians for setup, OEM procedures, troubleshooting and maintenance questions.
Parts & Consumables
Need caps, electrodes, dies or arms for this machine? We stock genuine GYS parts in California.
Browse Related PartsAccessories & consumables that still fit
Still available new — keeps a GYSPOT INVERTER BP.LG (GYSPOT BP GENI... working.
-
SPECIALIST WELDING COOLANT - 10L
Ref. 052246SPECIALIST WELDING COOLANT - 10L (ref. 52246) — cooling-circuit part/consumable for l...
Regular price $237.00Regular price -
Type A : Cap Box
Ref. 048935A box of 40 Type A electrode caps, the everyday cap for GYSPOT spot welders fitted wi...
Regular price $171.00Regular price -
SINGLE-POINT GUN QUICK FASTENING KIT
Ref. 082823Single point accessory kit for PTI NEO and PTI GENIUS PLUS. Can be use for dent repai...
Regular price $2,460.00Regular price -
-
G11 ARM - PTI-PRO CLAMP X-ARM ADAPTER
Ref. 071766G11 ARM - PTI-PRO CLAMP X-ARM ADAPTER — genuine GYS welding arm (ref. 71766) for the ...
Regular price $1,733.00Regular price -
G12 ARM 1000mm EXTRA DEEP
Ref. 075238G12 ARM 1000mm EXTRA DEEP — genuine GYS welding arm (ref. 75238) for the GYSPOT PTI r...
Regular price $5,250.00Regular price -
-
-
-
-
-
-
-
Spare parts for this machine
Genuine GYS service parts we hold in stock in California, from the manufacturer's spare-parts diagram. Order by reference, or call with your serial number if you're unsure.
-
Fan Ø172 - 230VAC - 425m3/hr
Ref. 51014Fan Ø172 - 230VAC - 425m3/hr — genuine GYS replacement part, reference 51014. Listed ...
Regular price $68.00Regular price -
PUSH BUTTON
Ref. 51381PUSH BUTTON — genuine GYS replacement part, reference 51381. Listed in the GYS spare-...
Regular price $18.50Regular price -
PUSH BUTTON (ROUND - ILLUMINATED) PTI.G
Ref. 51408PUSH BUTTON (ROUND - ILLUMINATED) PTI.G — genuine GYS replacement part, reference 514...
Regular price $48.00Regular price -
LCD SCREEN PTI
Ref. 51905LCD SCREEN PTI — genuine GYS replacement part, reference 51905. Listed in the GYS spa...
Regular price $477.00Regular price -
DIODE BRIDGE
Ref. 52195DIODE BRIDGE — genuine GYS replacement part, reference 52195. Listed in the GYS spare...
Regular price $267.00Regular price -
IGBT 450A 1200V MODULE
Ref. 52205IGBT 450A 1200V MODULE — genuine GYS replacement part, reference 52205. Listed in the...
Regular price $342.00Regular price -
Picoflex ribbon cable 10 pin - 40cm
Ref. 53095Picoflex ribbon cable 10 pin - 40cm — genuine GYS replacement part, reference 53095. ...
Regular price $7.79Regular price -
LINEAR SENSOR
Ref. 63090LINEAR SENSOR — genuine GYS replacement part, reference 63090. Listed in the GYS spar...
Regular price $106.00Regular price -
METALLIC ANGLE CONNECTOR MALE - BS
Ref. 71466METALLIC ANGLE CONNECTOR MALE - BS — genuine GYS replacement part, reference 71466. L...
Regular price $20.50Regular price -
AIR PRESSURE REGULATOR
Ref. 71729AIR PRESSURE REGULATOR — genuine GYS replacement part, reference 71729. Listed in the...
Regular price $102.00Regular price -
WATER PUMP for GYSPOT PTI S7 - 230V
Ref. 71771Genuine GYS replacement water pump for the GYSPOT PTI S7 resistance spot welder, 230 ...
Regular price $465.00Regular price -
INTERCHANGEABLE BASE for G-ARM CONNECTION
Ref. 90976Genuine GYS interchangeable base for the G-arm clamp connection. The brass block that...
Regular price $63.50Regular price -
FRONT BODY FITTING for PTI-G/BP-G
Ref. 078765The front body fitting is the water connection block at the front of the transformer ...
Regular price $267.00Regular price
