GYSPOT PTI MASTER COMPLETE (G1+G2+G4+G9) - 208/240V
Ref. 087972
The GYSPOT PTI MASTER is an automatic inverter resistance spot welder for modern car body assembly. Its defining featu… See more
Get your price by email
Your quote in a minute.
Or call (415) 419-5824.
Financing available on this equipment for US shops. Contact us for the monthly terms.

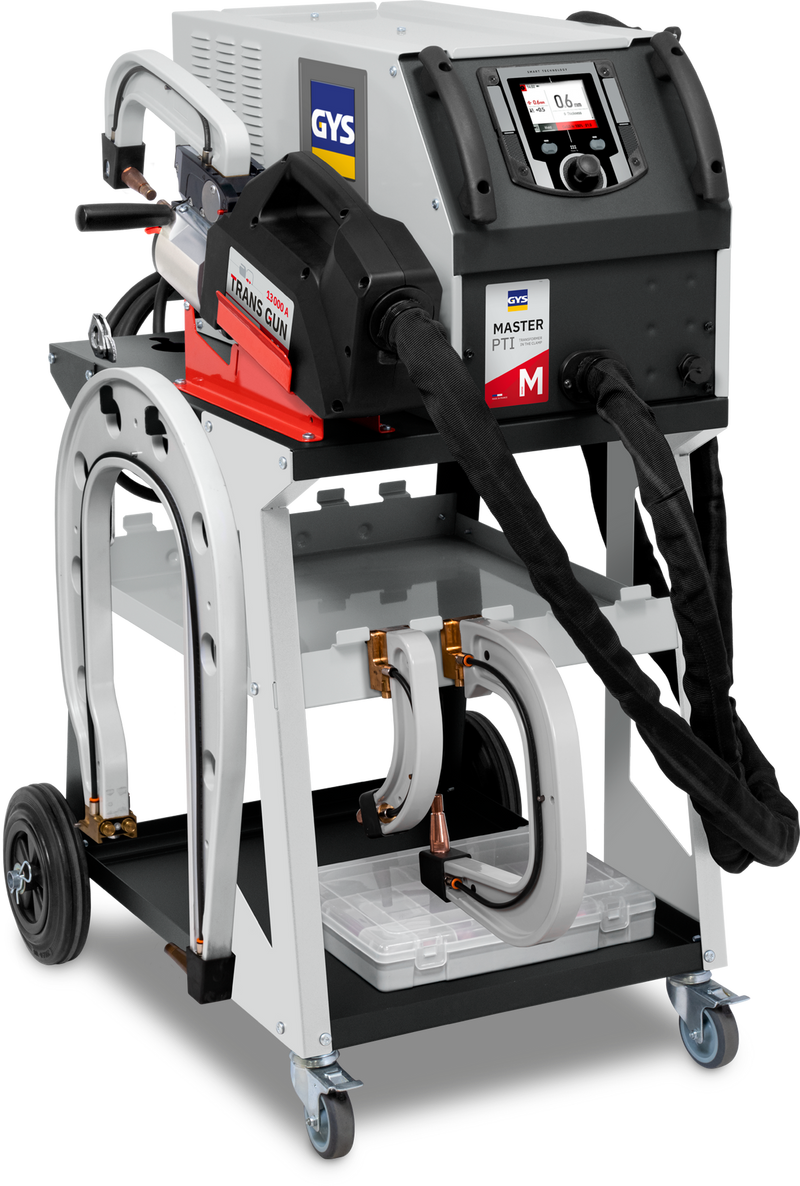

The GYSPOT PTI MASTER is an automatic inverter resistance spot welder for modern car body assembly. Its defining feature is the patented manual over-opening electrode — the arm retracts to open a much wider gap, so the gun reaches joints that a fixed-opening welder simply cannot get onto.
Think of it as PTI NEO capability with the access problem solved: same automatic operation, same 550 daN clamping force, same liquid-cooled gun — plus the retractable electrode for deep or obstructed panel work. Supplied complete with four premium G-arms (G1, G2, G4, G9).
- Patented manual over-opening — retract the electrode for a far larger working gap.
- 13,000 A max welding current at 240 V (12,500 A at 230 V, 11,300 A at 208 V).
- 550 daN clamping force, meeting OEM requirements.
- Automatic mode — the intelligent gun determines the correct welding parameters itself.

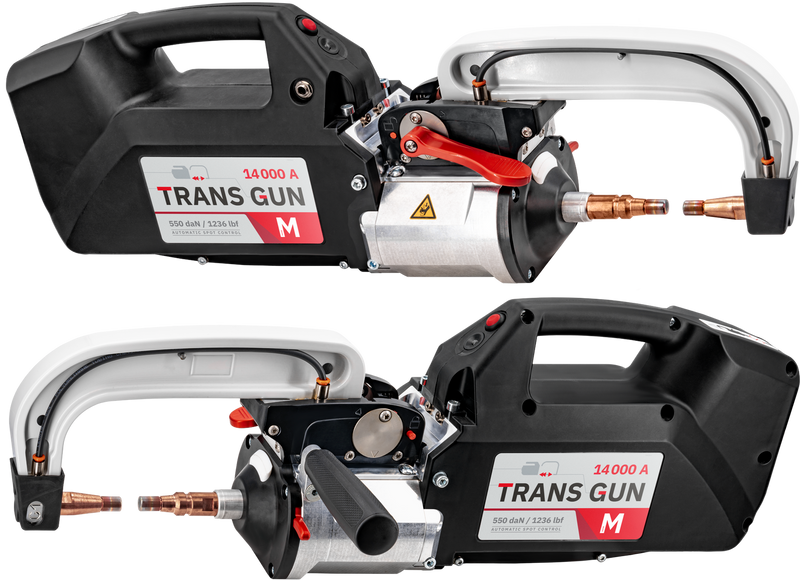

- Lightweight, compact gun (22.7 lbs) with integrated transformer and liquid cooling right through to the electrodes and caps.
- 3.5″ colour display with an ergonomic, genuinely usable interface.
- Brass clamp holder and automatic coolant connection — arms change fast, with no tools.
- Compact footprint for shops where space is at a premium. Spot-weld traceability available as an option.
- Made in France, EN 62135-1.
Specifications
| Max welding current | 13,000 A @ 240 V · 12,500 A @ 230 V · 11,300 A @ 208 V |
| Clamping force | 550 daN |
| Welding speed | 10 spots/min (max) |
| Supply | 3-phase 208–240 V, 50/60 Hz |
| Fuse / breaker | 30 A (D curve) |
| Cooling | Liquid — 1.32 US gal |
| Gun weight | 22.7 lbs |
| Harness length | 13.1 ft |
| Cables | 4 x AWG8, 26.2 ft |
| Machine weight | 138.9 lbs |
| Standard | EN 62135-1 · Made in France |
Performance
| Welding Current | 13 000 A |
| Clamping Force | 550 daN |
| Duty Cycle | 10 spots/min |
| Cooling | Liquid-cooled |
Electrical & Physical
| Power supply | 3-Phase 208-240V |
| Frequency | 50/60 Hz |
| Breaker / Fuse | 30 A |
| Weight | 138.9 lbs |
| Dimensions | 31 x 22.8 x 25.2 in |
| Certification | EN 62135-1 |
