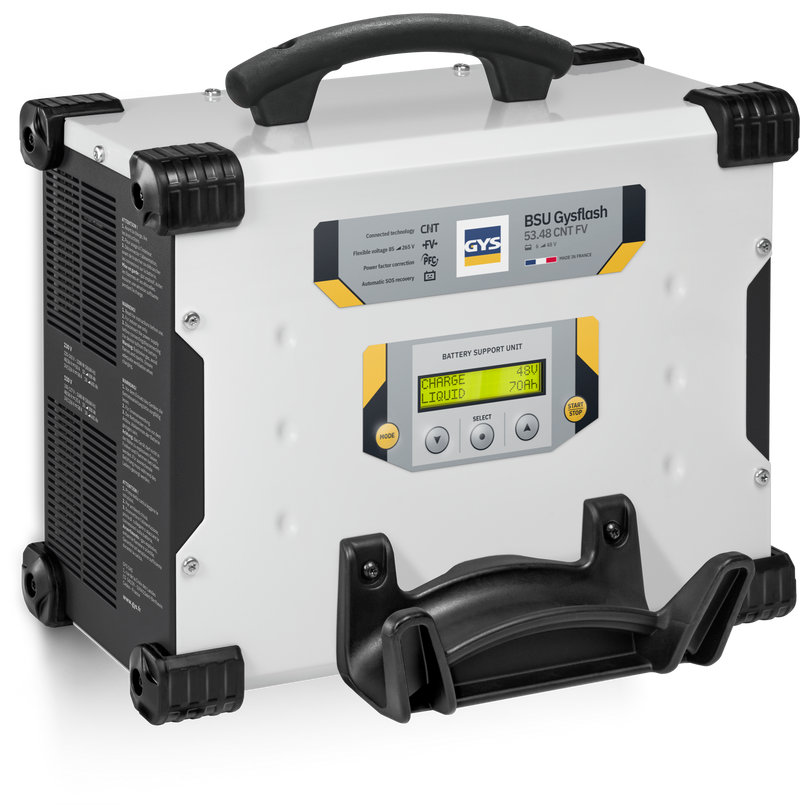

GYSFLASH 53.48 CNT FV (5m Cables)
Ref. 025998
The GYSFLASH 53.48 CNT FV is a 50 A connected charger and battery support unit for 6, 12, 16, 24, 36 and 48 V batterie… See more
Ships by Ground, rate by weight and state. Pick your state for the exact figure.
Financing available on this equipment for US shops. Contact us for the monthly terms.
The GYSFLASH 53.48 CNT FV is a 50 A connected charger and battery support unit for 6, 12, 16, 24, 36 and 48 V batteries, lead or lithium. Built for wall or lift mounting with a cable reel on the front, it is the GYSFLASH for workshops that also maintain traction batteries: forklifts, scissor lifts, floor scrubbers and other 24–48 V equipment.
- Charge: 6 to 48 V lead or lithium batteries from 10 to 600 Ah, with dedicated traction-battery profiles.
- Diagnostic: supports vehicle batteries at up to 50 A during diagnostics.
- Showroom and Tester modes.
Upright or low: the 53.48 mounts on the wall or the lift. For a low case, 13 cm (5.1 in) high, that sits on a bench, a shelf or a cart, the GYSFLASH 51.48 CNT FV is the same 50 A, 6 to 48 V unit.
For Tesla: recent Teslas run a 16 V lithium-ion low-voltage battery (Model S and X since the 2021 refresh, Model 3 and Y from about 2021–2022), the Cybertruck runs a 48 V low-voltage system, and older models use 12 V. The 53.48 supports 12, 16, 24 and 48 V vehicles in diagnostic mode, so one unit keeps any Tesla's low-voltage system powered while the car is awake in the shop: diagnostics, camera and sensor calibrations, setting up replaced parts. For spot welding, follow Tesla's repair procedure and disconnect the low-voltage power first.
What the amps mean: while a car is awake in the shop for diagnostics or calibrations, its computers, fans and pumps keep drawing current. The support unit supplies that current at a set voltage, so the battery doesn't drain and the session isn't cut short by low voltage. The 53.48 gives up to 50 A from 6 to 24 V on any outlet, and 50 A at 36–48 V on 240 V (about 25 A on a 120 V outlet). For vehicles that draw more, the GYSFLASH 101.24 gives up to 100 A, up to 24 V.
What's automatic, and what you set:
- It starts by itself. With Auto-Detect on, connect the clamps and the mode you selected starts after 3 seconds, no button to press. You can switch Auto-Detect off in the settings.
- It charges by itself. The charge runs start to finish without supervision (8 steps for lead, 9 for lithium): it checks the battery, brings back a deeply discharged one from 2 V, charges it, then holds it full, so it can stay connected.
- It restarts by itself. After a power cut, Auto-Restart starts it again with the same settings.

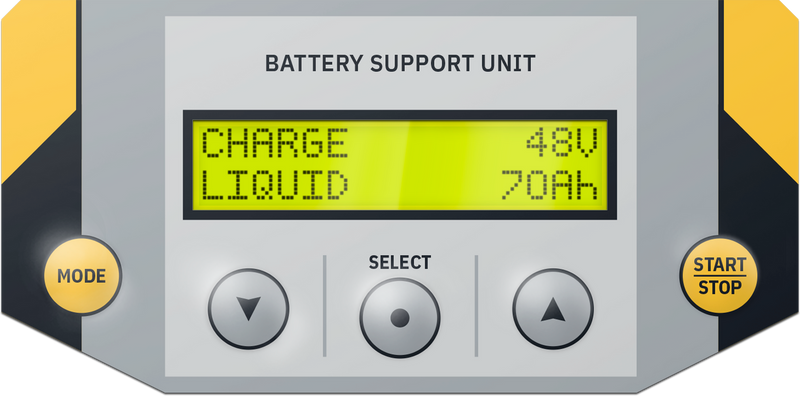

- You set the rest. Choose the mode (lead or lithium charge, Diag+, Showroom or Tester), then the battery type, its voltage (6 to 48 V; 16 V takes the extra step below) and its size in Ah; in Diag+, the voltage to hold and the maximum current. The unit does not pick the voltage for you: it checks the battery first and stops with an error code if it doesn't match, a 24 V battery in 12 V mode for example.
- 16 V for Tesla takes one extra step. As delivered, Diag+ offers 12, 24 and 48 V. The 16 V setting comes with the Car Extended setup of GYS's free configurator (next point), loaded once from a USB stick.
- Optional: GYS's free configurator. Most shops use the unit as delivered and never need it. The configurator is a free GYS web page (no account, nothing to install) that makes a small settings file you load from a USB stick, to add extra modes: 16 V for Tesla, Change Battery (keeps the car powered while you swap its battery, so the modules keep their memory), start assist, an adjustable power supply or forklift-battery charging. Do you need it? See how it works.

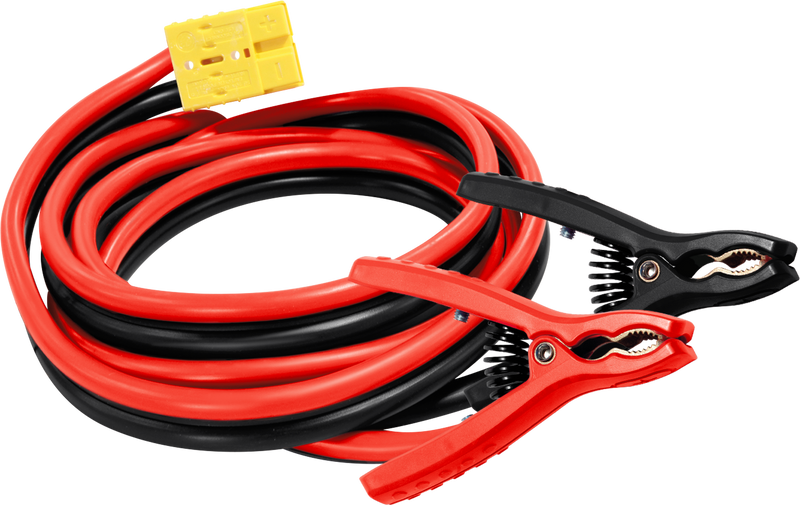

Flexible Voltage 85–265 V, USB profiles and charging history, SMC module socket, 5 m (16 ft) cables and wall mount supplied, 13 lb. Made in France, GYS reference 025998, 2-year GYS warranty.
Compare every GYSFLASH unit, with its output on a 120 V outlet, on our battery support units page.
Performance
| Output Current | 50 A (6–48 V, on 240 V) |
| On a 120 V outlet | 50 A at 6–24 V · 25 A at 36–48 V |
| Batteries | 6 to 48 V lead & lithium, 5–600 Ah, incl. traction batteries |
| Controller | USB connected, SMC module socket |
Electrical & Physical
| Power supply | 100–127 V / 220–240 V (Flexible Voltage 85–265 V) |
| Frequency | 50 / 60 Hz |
| Protection Rating | IP30 |
| Weight | 13 lb (5.9 kg) |
| Dimensions | 13.4 × 10 × 5.9 in (34 × 25.4 × 15 cm) |
| Certification | EN 60335-2-29 |
