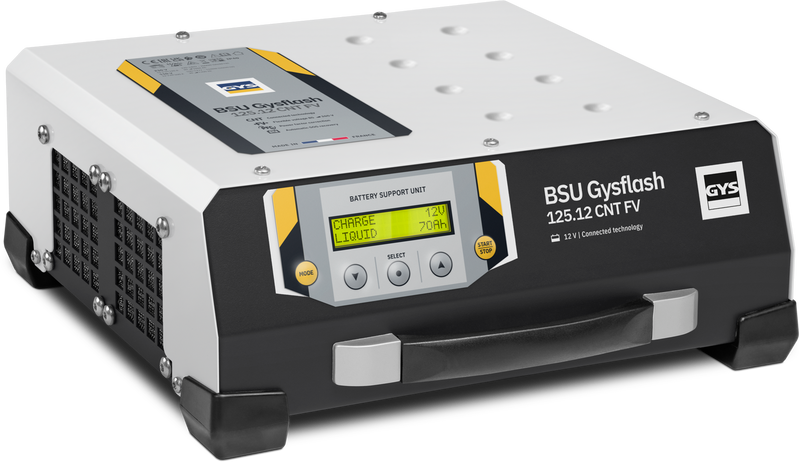

GYS GYSFLASH 125.12 CNT FV 120 A flashing power supply and charger (ref. 028883)
GYSFLASH 125.12 CNT FV (ref. 028883), photo 2
GYSFLASH 125.12 CNT FV (ref. 028883), photo 3
1 / 4
GYS

GYSFLASH 125.12 CNT FV (5m Cables)

Ref. 028883

The GYSFLASH 125.12 CNT FV is GYS's 120 A connected battery charger and power supply for dealership workshops and show… See more

$1,995.00
Output Current120 A at 240 V · 100 A on 120 V
On a 120 V outlet100 A continuous (77 A at 104 °F)
Power100–127 V / 220–240 V (Flexible Voltage 85–265 V)
Datasheet (EN)

Restocking — reserve yours

We're restocking GYSFLASH 125.12 CNT FV (5m Cables). Leave your email and we reserve one for you from the next delivery, no deposit, and confirm the date before it ships.

Prefer to talk it through? We call you back.

Configuration, OEM programs, financing, delivery and installation — one call with a factory-trained tech, within one business day.

Before you order: check that your shop's power supply matches this machine's voltage and phase (see specifications). Not sure? Call us at (415) 419-5824 — we'll confirm the right configuration.

Financing available on this equipment for US shops. Contact us for the monthly terms.

EN 60335-2-29

The GYSFLASH 125.12 CNT FV is GYS's 120 A connected battery charger and power supply for dealership workshops and showrooms. It holds a 12 V lead-acid or lithium (LFP) battery at a perfectly stable voltage during diagnostics and module programming, delivers the charging cycle recommended by the vehicle makers, and is fully customisable through its USB port. Made in France, supplied with 5 m cables.

Low or upright: the 125.12 has a low case, 13 cm (5.1 in) high, that rides on a cart and slides under the car. For a unit that stays mounted on the wall or the lift, the GYSFLASH 123.12 CNT FV is the same 120 A unit in an upright case, with its cables on a front reel.

Four operating modes

  • Charge: 12 V lead or lithium batteries from 20 to 1,500 Ah, automatic 8- or 9-step curve about 50% faster than a conventional charger.
  • Diagnostics / power supply: up to 120 A continuous at 25 °C (116 A at 40 °C) to keep the vehicle electronics awake during flashing, calibration and long diagnostic sessions.
  • Showroom: compensates the current drawn by a demonstration vehicle's accessories and keeps the battery optimally charged for months.
  • Tester: checks battery voltage, the starting system (starter and battery) and the alternator.

What's automatic, and what you set

  • It starts by itself. With Auto-Detect on, connect the clamps and the mode you selected starts after 3 seconds, no button to press. You can switch Auto-Detect off in the settings.
  • It charges by itself. The charge runs start to finish without supervision (8 steps for lead, 9 for lithium): it checks the battery, brings back a deeply discharged one from 2 V, charges it, then holds it full, so it can stay connected.
  • It restarts by itself. After a power cut, Auto-Restart starts it again with the same settings.
  • You set the rest. Choose the mode (lead or lithium charge, Diag+, Showroom or Tester), then the battery type (normal, AGM or flooded lead, or lithium) and its size in Ah; in Diag+, the voltage to hold and the maximum current. If the battery doesn't match the settings, the unit stops with an error code instead of charging.
  • Optional: GYS's free configurator. Most shops use the unit as delivered and never need it. The configurator is a free GYS web page (no account, nothing to install) that makes a small settings file you load from a USB stick, to add extra modes: Change Battery (keeps the car powered while you swap its battery, so the modules keep their memory), start assist or an adjustable power supply. It can't add 16 V: for Teslas with a 16 V battery, see the 101.24 or 51.48. Do you need it? See how it works.

Connected and safe

  • Add, delete or modify charging modes and profiles by USB; import the configuration files of your brand; export the charging history to a spreadsheet.
  • Smart Module Connector socket for a printer, barcode reader and other modules.
  • Flexible Voltage: runs on any supply from 85 to 265 V (100 A on 110 V). Protection against short circuit, polarity reversal and overheating.

Specifications: 2,000 W, 5 m / 25 mm² cables with M6 lugs, 6.3 kg (13.9 lb), 33.4 × 13 × 28 cm, EN 60335-2-29. GYS ref. 028883. Which charger fits your workshop? Call (415) 419-5824.

Compare every GYSFLASH unit, with its output on a 120 V outlet, on our battery support units page.

Performance

Output Current120 A at 240 V · 100 A on 120 V
On a 120 V outlet100 A continuous (77 A at 104 °F)
Batteries12 V lead & lithium (LFP), 20–1,500 Ah
ControllerUSB connected, SMC module socket

Electrical & Physical

Power supply100–127 V / 220–240 V (Flexible Voltage 85–265 V)
Frequency50 / 60 Hz
Protection RatingIP40
Weight13.9 lb (6.3 kg); 23.8 lb boxed with cables
Dimensions13.1 × 5.1 × 11 in (33.4 × 13 × 28 cm)
CertificationEN 60335-2-29

Manufacturer Warranty

Every new GYS machine carries a 2-year factory warranty from the date of sale. Keep your invoice — our US team handles claims and service directly.

2-Year Warranty

Technical Support

Factory-trained technicians for setup, OEM procedures, troubleshooting and maintenance questions.

Parts & Consumables

Need caps, electrodes, dies or arms for this machine? We stock genuine GYS parts in California.

Browse Related Parts
Maintain your equipment according to the schedule in the GYS manual to keep warranty eligibility.
Needs a repair? Ship it to our repair center in Rohnert Park, CA. How to send it
