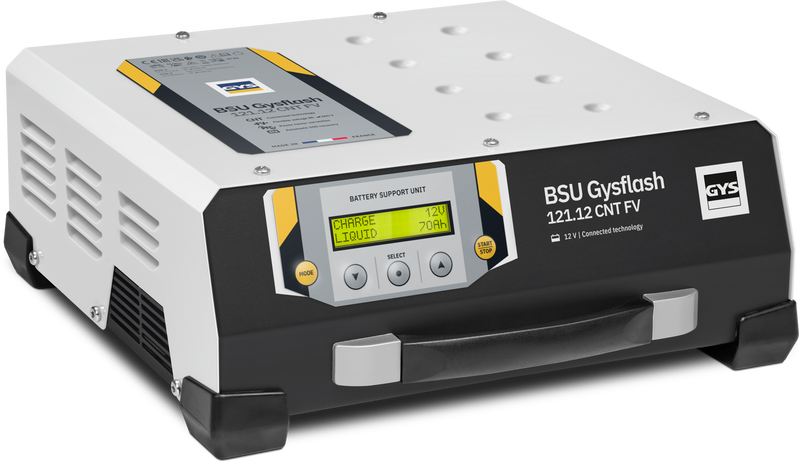

GYS GYSFLASH 121.12 CNT FV 120 A flashing power supply and charger (ref. 026971)
GYSFLASH 121.12 CNT FV (ref. 026971), photo 2
GYSFLASH 121.12 CNT FV (ref. 026971), photo 3
GYSFLASH 121.12 CNT FV (ref. 026971), photo 4
1 / 5
GYS

GYSFLASH 121.12 CNT FV (5m Cables)

Ref. 026971

Last unit in stock. The GYSFLASH 121.12 CNT FV is GYS's previous-generation 120 A connected battery support unit and c… See more

$1,895.00
Output Current120 A max at 240 V · 100 A max on 120 V
On a 120 V outlet75 A continuous (55 A at 104 °F)
Power100–127 V / 220–240 V (Flexible Voltage 85–265 V)
Request Quote
Datasheet (EN)

Prefer to talk it through? We call you back.

Configuration, OEM programs, financing, delivery and installation — one call with a factory-trained tech, within one business day.

Before you order: check that your shop's power supply matches this machine's voltage and phase (see specifications). Not sure? Call us at (415) 419-5824 — we'll confirm the right configuration.

Ships by Ground, rate by weight and state. Pick your state for the exact figure.

Financing available on this equipment for US shops. Contact us for the monthly terms.

EN 60335-2-29

Last unit in stock. The GYSFLASH 121.12 CNT FV is GYS's previous-generation 120 A connected battery support unit and charger for 12 V lead-acid and lithium (LFP) batteries. It holds the battery at a stabilized voltage while you diagnose, flash and calibrate, and charges with the curve recommended for modern vehicles.

It has been replaced by the GYSFLASH 125.12 CNT FV, which delivers 100 A continuous on a 120 V outlet against 75 A for the 121.12; on 240 V both reach 120 A. Compare every model on our battery support units page.

Four operating modes

  • Charge: 12 V lead or lithium (LFP) batteries from 20 to 1,500 Ah, with an 8-step (lead) or 9-step (LFP) curve.
  • Diagnostic: supports up to 120 A while the vehicle is diagnosed or programmed.
  • Showroom: compensates the current drawn by a demonstration vehicle and keeps its battery charged.
  • Tester: checks battery voltage, the starting system and the alternator.

What's automatic, and what you set

  • It starts by itself. With Auto-Detect on, connect the clamps and the mode you selected starts after 3 seconds, no button to press. You can switch Auto-Detect off in the settings.
  • It charges by itself. The charge runs start to finish without supervision (8 steps for lead, 9 for lithium): it checks the battery, brings back a deeply discharged one from 2 V, charges it, then holds it full, so it can stay connected.
  • It restarts by itself. After a power cut, Auto-Restart starts it again with the same settings.

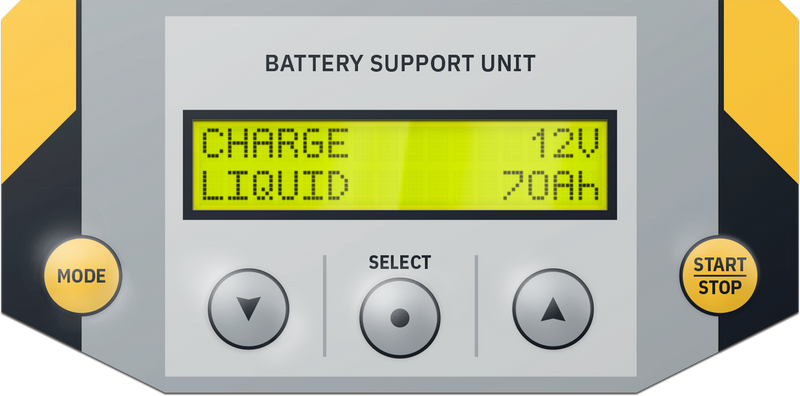

  • You set the rest. Choose the mode (lead or lithium charge, Diag+, Showroom or Tester), then the battery type (normal, AGM or flooded lead, or lithium) and its size in Ah; in Diag+, the voltage to hold and the maximum current. If the battery doesn't match the settings, the unit stops with an error code instead of charging.
  • Optional: GYS's free configurator. Most shops use the unit as delivered and never need it. The configurator is a free GYS web page (no account, nothing to install) that makes a small settings file you load from a USB stick, to add extra modes: Change Battery (keeps the car powered while you swap its battery, so the modules keep their memory), start assist or an adjustable power supply. It can't add 16 V: for Teslas with a 16 V battery, see the 101.24 or 51.48. Do you need it? See how it works.

Connected

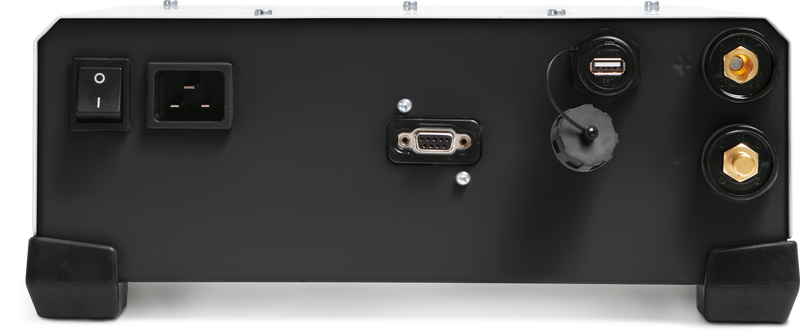

USB port to add or modify charging profiles, import configuration files and export the charging history to a spreadsheet; SMC socket for the CNT-SPM printer and other modules. Flexible Voltage 85–265 V, 5 m (16 ft) 25 mm² cables, low 13 cm (5.1 in) case. Made in France, GYS reference 026971, 2-year GYS warranty.

Performance

Output Current120 A max at 240 V · 100 A max on 120 V
On a 120 V outlet75 A continuous (55 A at 104 °F)
Batteries12 V lead & lithium (LFP), 20–1,500 Ah
ControllerUSB connected, SMC module socket

Electrical & Physical

Power supply100–127 V / 220–240 V (Flexible Voltage 85–265 V)
Frequency50 / 60 Hz
Protection RatingIP20
Weight13 lb (5.9 kg)
Dimensions12.8 × 5.1 × 10.7 in (32.5 × 13 × 27.2 cm)
CertificationEN 60335-2-29

Manufacturer Warranty

Every new GYS machine carries a 2-year factory warranty from the date of sale. Keep your invoice — our US team handles claims and service directly.

2-Year Warranty

Technical Support

Factory-trained technicians for setup, OEM procedures, troubleshooting and maintenance questions.

Parts & Consumables

Need caps, electrodes, dies or arms for this machine? We stock genuine GYS parts in California.

Browse Related Parts
Maintain your equipment according to the schedule in the GYS manual to keep warranty eligibility.
Needs a repair? Ship it to our repair center in Rohnert Park, CA. How to send it

Compatible accessories

Genuine GYS parts and options for the GYSFLASH 121.12 CNT FV (5m Cables).
